The following instructions describe how to remove the glass panel from the Fireplug Series Electric Fireplace.
Models Supported:
80070 - Fireplug Pro 24"
80071 - Fireplug Pro 29"
80072 - Fireplug Pro 33"
Tools Required:
- Philips-head screw driver
Instructions:
To remove the glass panel, please follow the instructions below:

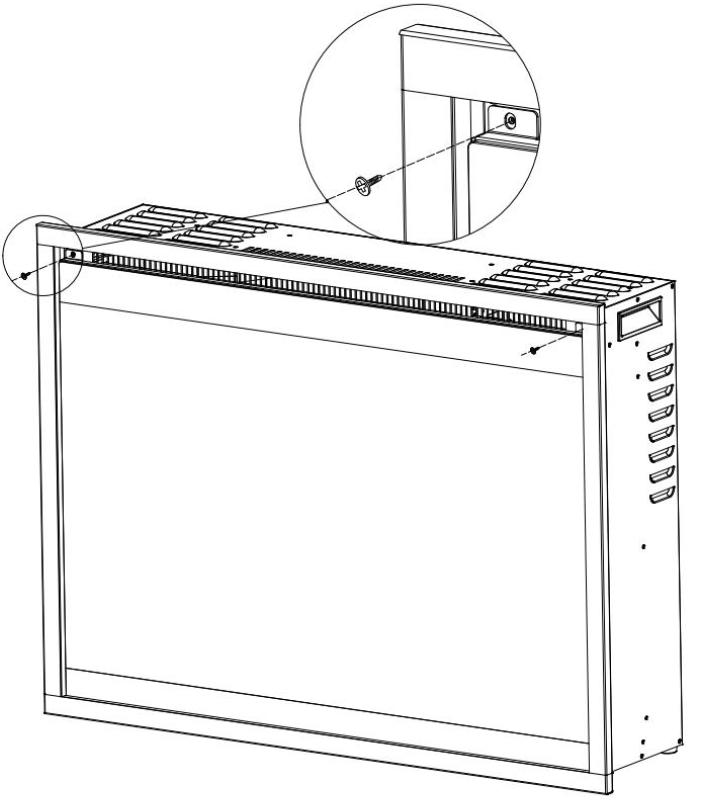

1. There are 2 screws in the top vent opening, one on the far left and one on the far right that secure the left and right trim pieces in place. Remove both screws to remove the trim pieces.

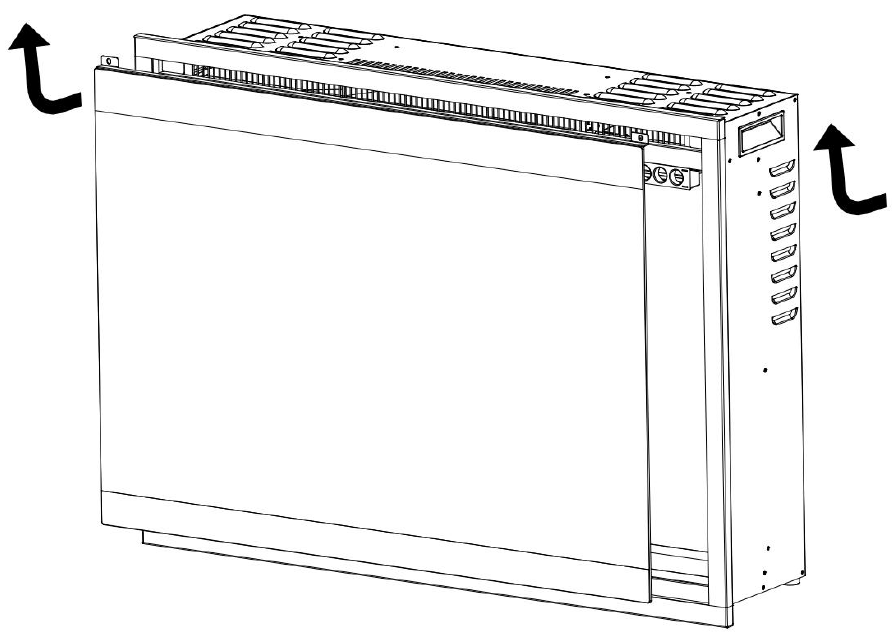

2. After removing screws, tilt glass panel away from the fireplace. Lift the glass panel away from the fireplace to remove the glass panel. Store the glass panel in a soft, dry place.
CAUTION: It is recommended that 2 people remove the glass panel to minimize chance of breakage.
Video Instructions:
For video instructions on removing the glass panel on your Fireplug Series Electric Fireplace, click on the following link:
Video Instructions for Removing Glass Panel on Fireplug Pro Series Electric Fireplace
Need More Help?
Please contact our technical support team at 800-215-1990 for further troubleshooting or click the following link to file a support ticket:
https://touchstonehomeproducts.freshdesk.com/support/tickets/new
