How To: Remove The Glass Panel On The Sideline Elite ABI Series Electric Fireplace

Modified on Fri, 11 Apr at 4:08 PM

The following instructions describe how to remove the glass panel from the Sideline Elite ABI Series Electric Fireplace.


Models Supported:

80068 - Sideline Elite ABI 42" Electric Fireplace

80069 - Sideline Elite ABI 50" Electric Fireplace




Tools Required:


    - Philips-head screw driver




Instructions:


To remove the glass panel, please follow the instructions below:

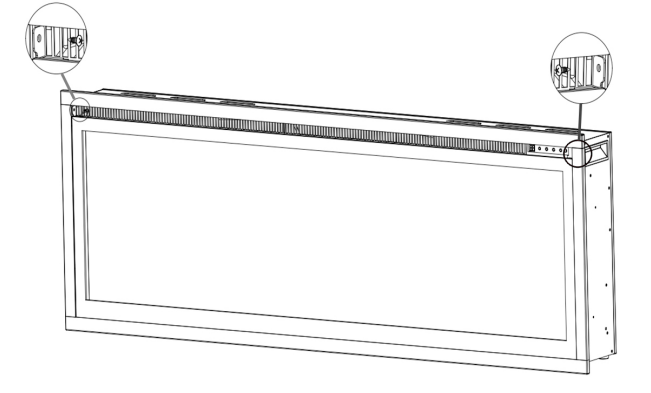

1. There are 2 screws in the top vent opening, one on the far left and one on the far right that secure the left and right trim pieces in place. Remove both screws to remove the trim pieces.


Remove 2 screws securing the glass panel in place

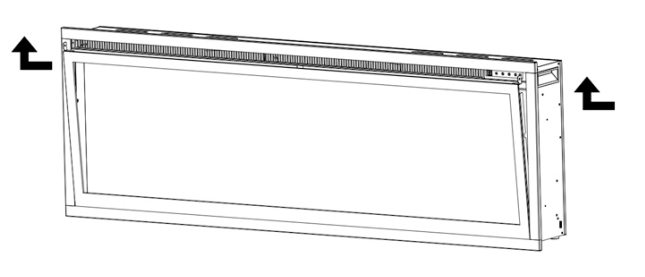

2. After removing screws, tilt glass panel away from the fireplace. Lift the glass panel away from the fireplace to remove the glass panel. Store the glass panel in a soft, dry place.


Remove glass panel from fireplaceCAUTION: It is recommended that 2 people remove the glass panel to minimize chance of breakage.


Video Instructions:


For video instructions on removing the glass panel on your Sideline Elite ABI Series Electric Fireplace, click on the following link:


Video Instructions for Removing Glass Panel on Sideline Elite ABI Series Electric Fireplace




Need More Help?


Please contact our technical support team at 800-215-1990 for further troubleshooting or click the following link to file a support ticket:


https://touchstonehomeproducts.freshdesk.com/support/tickets/new
