Follow the steps below for pairing the 25070 Whisper Lift II RF wireless remote control to the 23202 Whisper Lift II TV Lift:
Lifts Supported:
- 23202: Whisper Lift II
Tools Needed:
- Paper clip
Instructions:

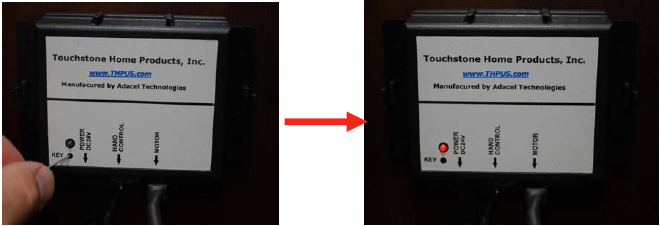

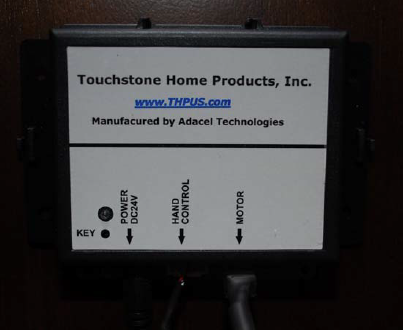

1. On the control box, there will be a hole to the right of the word KEY.
2. With a straightened out paper clip, push it into the hole and press/hold the button inside the hole for 3 seconds until the indicator light flashes twice and turns on solid red.
3. Press ANY button on the wireless remote to pair the remote to the control box. If you are successful, the red light on the control box will turn off. If the pairing fails, the indicator light on the control box will flash 4-5 times.
Video Instructions:
For video instructions on pairing the 25070 Whisper Lift II RF wireless remote to the lift, click on the following link:
Pairing 25070 Whisper Lift II RF Wireless Remote to 23202 Whisper Lift II TV Lift
Need More Help?
Please contact our technical support team at 800-215-1990 for further troubleshooting or click the following link to file a support ticket:
https://touchstonehomeproducts.freshdesk.com/support/tickets/new
