Follow the steps below for re-calibrating/initializing the Whisper Lift II PRO / XL PRO TV Lift.

Lifts Supported:

23401 - Whisper Lift II PRO

23501 - Whisper Lift II PRO Swivel TV Lift

23601 - Whisper Lift XL PRO TV Lift

23602 - Whisper Lift XL PRO Swivel TV Lift

Tools Needed:

- None

Instructions:

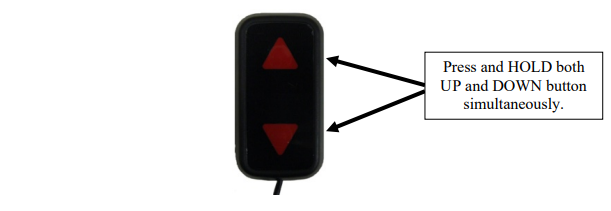

1: Press and HOLD the UP and DOWN button on the wired remote control together at the same time until the red light on the top of the control box starts to flash.

Follow the steps below for Re-calibrating/Initializing the Whisper Lift 2 PRO/ XL PRO TV Lift

2: Release the UP and DOWN button and the indicator light on the top of the control box will flash 3 times and turn off. The lift will go all the way to the bottom, back up the top and all the way down to the bottom again. The red light on the control box will come back on when the initialization procedure is complete. **Note: Do not proceed until this procedure is complete

Video Instructions:

For video instructions on re-calibrating/initializing the Whisper Lift II PRO/XL PRO TV Lift, click on the following link:

Re-calibrating/Initializing the Whisper Lift II PRO/XL PRO TV Lift

Need More Help?

Please contact our technical support team at 800-215-1990 for further troubleshooting or click the following link to file a support ticket:

https://touchstonehomeproducts.freshdesk.com/support/tickets/new
