How To: Replace The Flame Motor In The Sideline Series Electric Fireplaces

Problem: The flames are no longer moving and are stationary when the fireplace is turned on.

Solution: Replace the flame motor

Models Supported:

80004 - Sideline 50"

80006 - Forte 40"

80011 - Sideline 60"

80014 - Sideline 36"

80015 - Sideline 72"

80025 - Sideline 45"

80027 - Sideline 40"

80032 - Sideline 100"

80043 - Sideline 84"

Tools Required:

    - Philips-head screw driver

Instructions:

1.  Turn off power to the fireplace, remove the unit from the wall, and unplug the fireplace from the wall outlet.

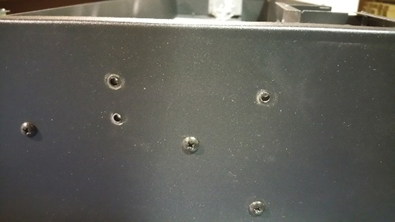

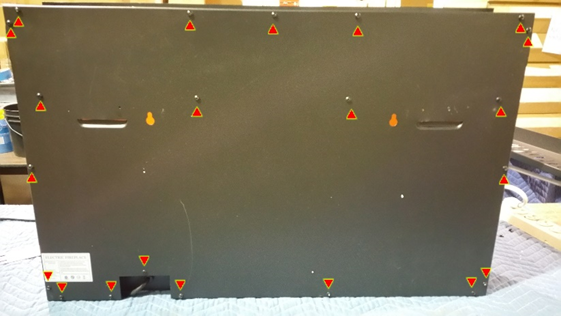

2. Remove back panel from the fireplace.  Remove all screws shown below (depending on the size of your fireplace, there may be more screws that what is shown below).

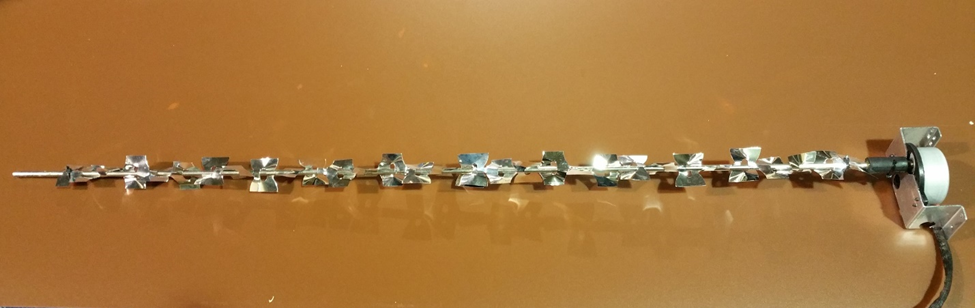

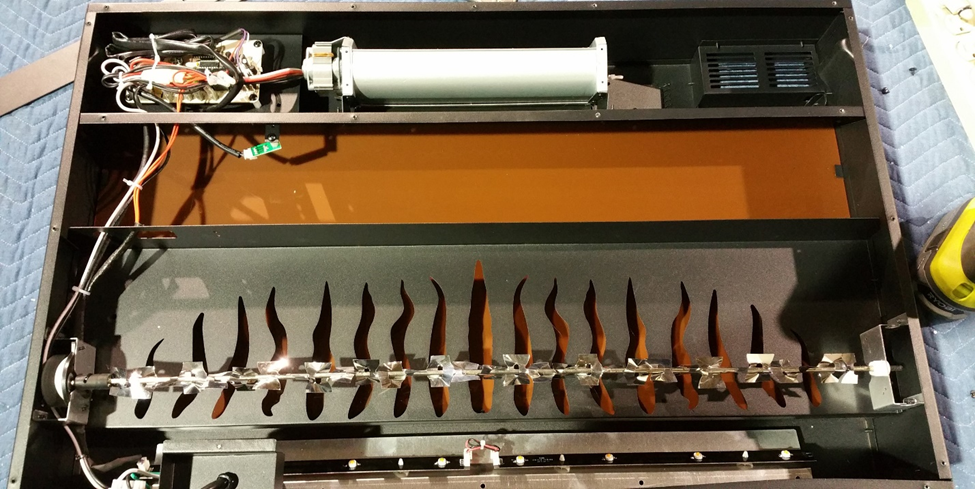

3. Once the back panel is removed, you will see the inside parts of the fireplace.  The flame rod is the rod with tinsel attached.

4. On the left side of the fireplace you will see a set of screws that hold the flame motor assembly in place.  Remove the screws highlighted below:

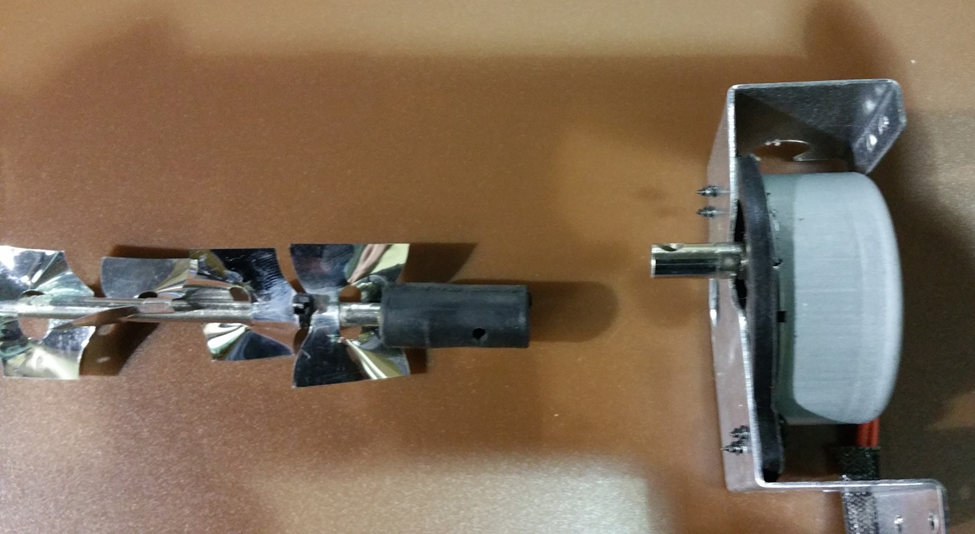

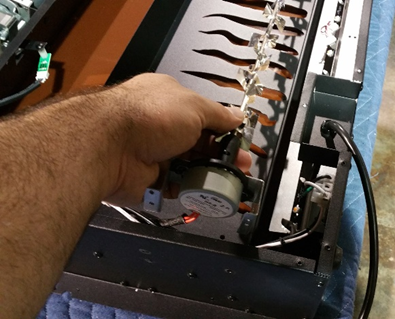

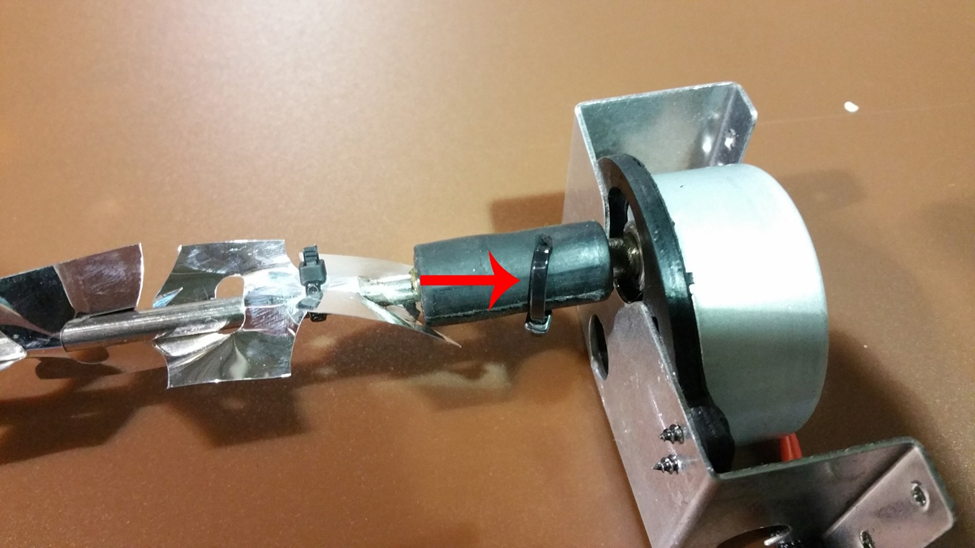

5. Once the screws are removed, remove the flame motor from the fireplace and pull the other end of the flame rod out of its holder.

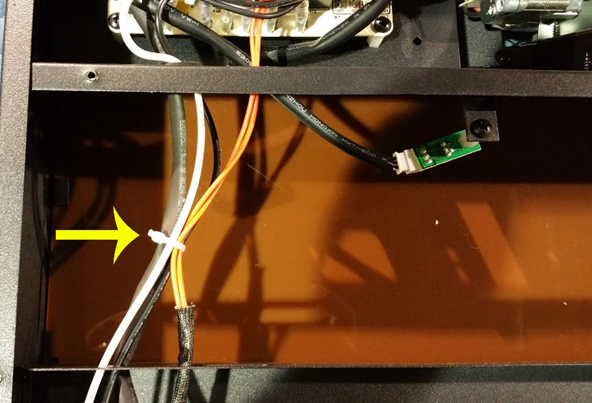

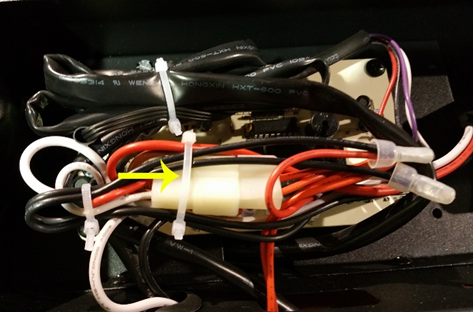

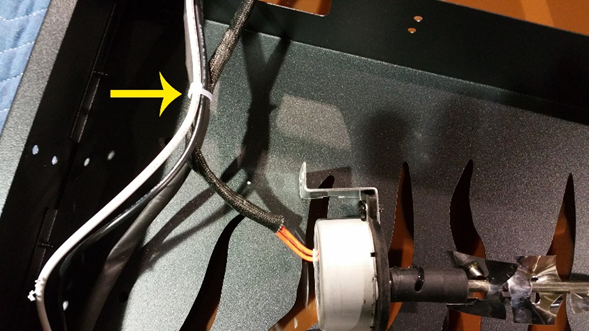

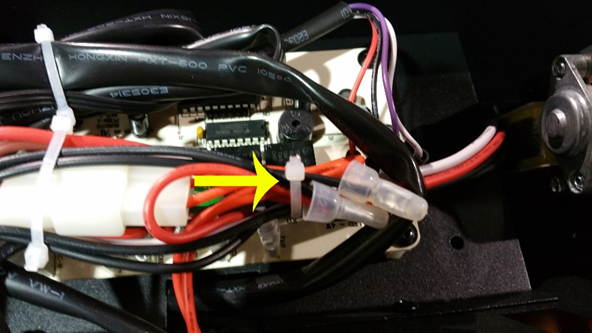

6. Following the motor cable from the flame motor toward the control board, cut the zip ties shown below:
