How To: Remove Front Panel On The Sideline Deluxe Series Electric Fireplace

Modified on Mon, 15 Apr 2024 at 11:44 AM

The following instructions describe how to remove the front panel on the Sideline Deluxe Series Electric Fireplace.

Models Supported:

86273 - Sideline Deluxe Stainless Steel 50 Inch

86275 - Sideline Deluxe Gold 50 Inch

86276 - Sideline Deluxe Gold 60 Inch

86277 - Sideline Deluxe Stainless Steel 60

Tools Required:

- Philips-head screw driver

Instructions:

1. There are 6-8 screws securing the front panel to the fireplace.

- Remove 4 screws securing the front panel to the firebox.

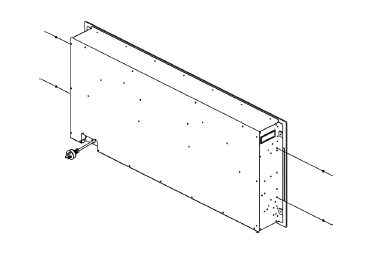

- There are 2 screws on the left side and 2 screws on the right side of the fireplace (see below).

Remove 4 screws on side of fireplace holding glass panel in place

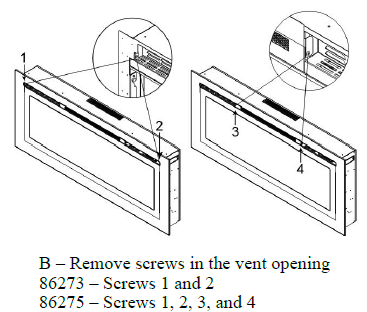

2. Remove the screws from the front fireplace holding the front panel in place.

For the 86273 and 86277, you will remove only the 2 outer screws (1 and 2).

For the 86275 and 86276, you will remove 4 screws (1, 2, 3, and 4).

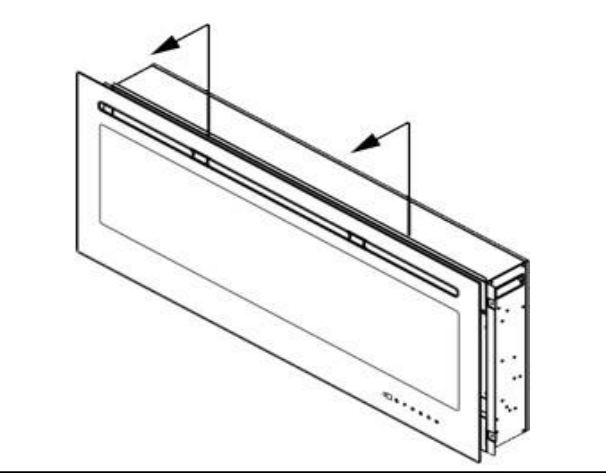

3. After removing screws, lift front panel UP and STRAIGHT OUT toward you to remove

from fireplace. Place front panel in a soft, dry place.

CAUTION: It is recommended that 2 people remove the front panel to minimize chance of break

Video Instructions:

For video instructions on removing the glass panel on your Deluxe Series Electric Fireplace, click on the following link:
