How To: Replace the Flame LED Lights On The Deluxe Series Electric Fireplace

Modified on Mon, 15 Apr at 11:45 AM

Problem: The lights are no longer work.

Models Supported:

86273 - Sideline Deluxe Stainless Steel 50 Inch

86275 - Sideline Deluxe Gold 50 Inch

86276 - Sideline Deluxe Gold 60 Inch

86277 - Sideline Deluxe Stainless Steel 60

Tools Required:

- Philips-head screw driver

Instructions:

Resolution:

1. Unplug fireplace and remove from wall.

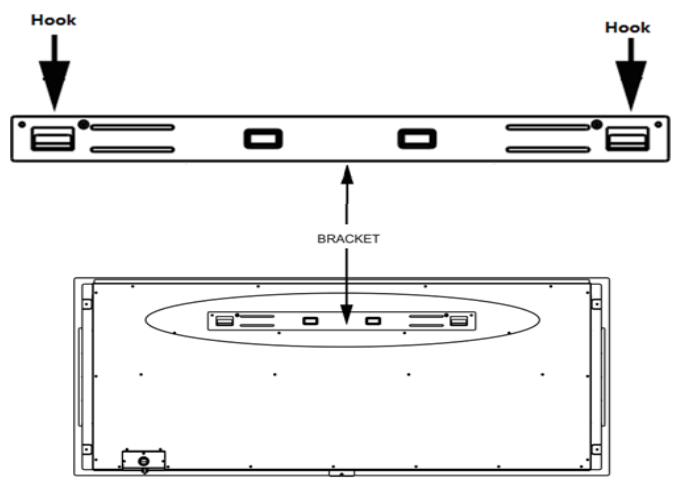

2 Remove the mounting bracket on the back of the fireplace by removing the 2 screws

Remove wall mount bracket

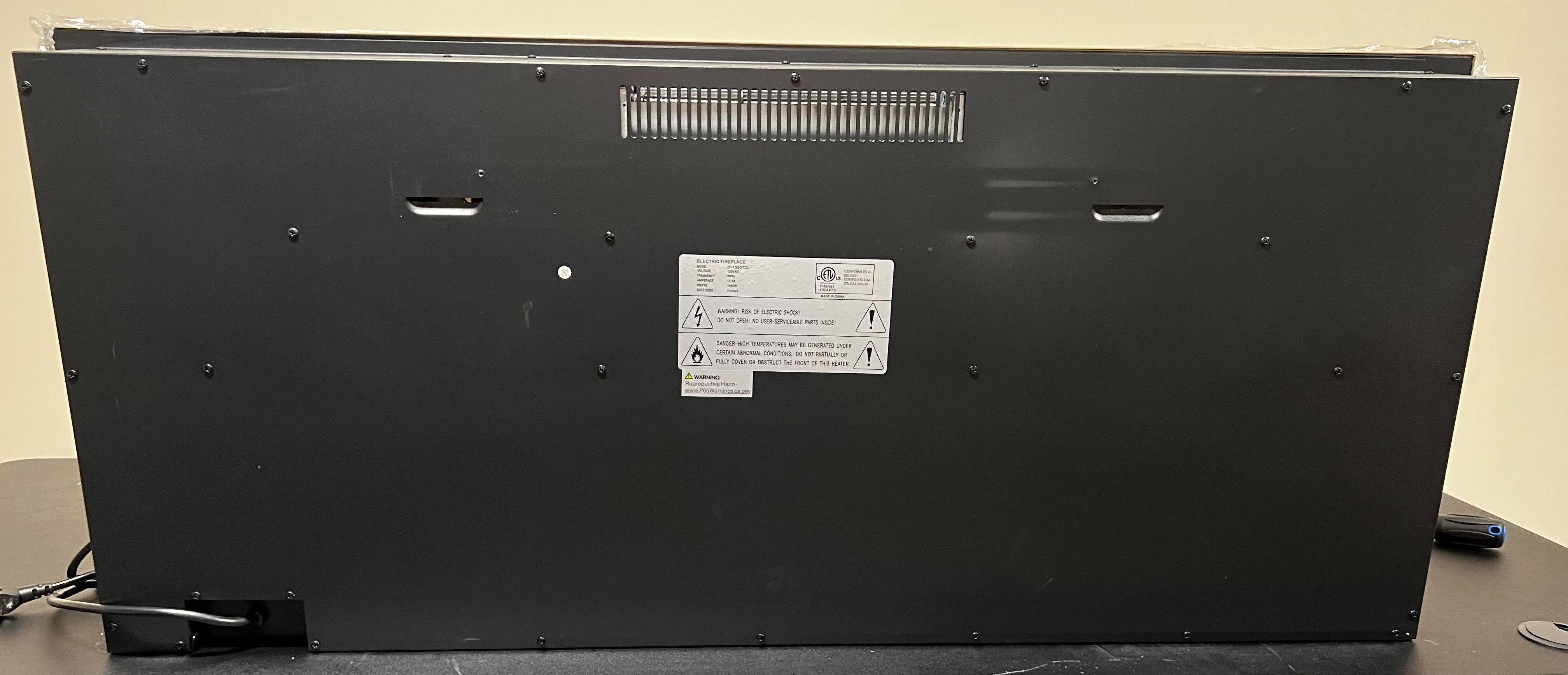

3. Remove the rear panel on the fireplace by removing the screws.

Remove back panel screws and back panel

4. After the rear panel is removed, you will have access to the light strips.

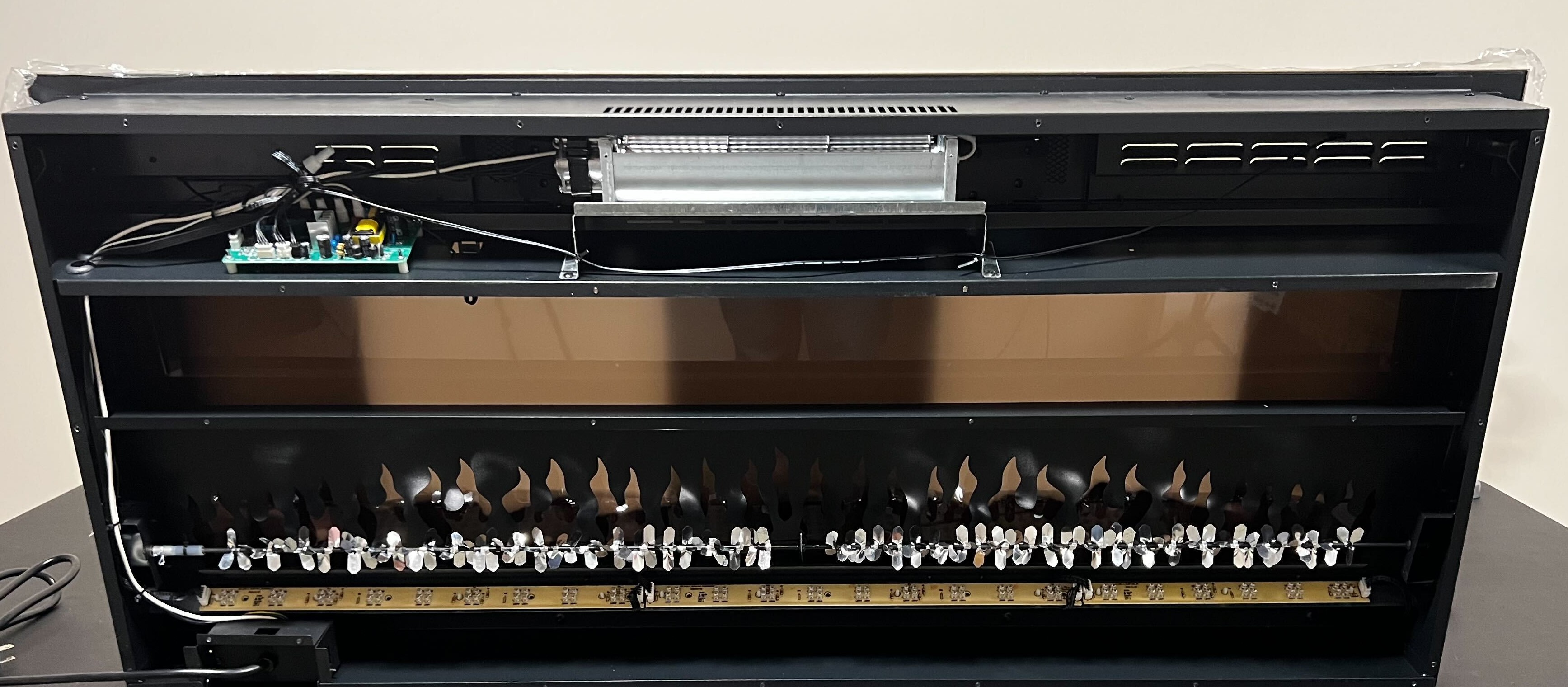

View of LED Light strips

5. Unplug the power connection from the failing light strip.

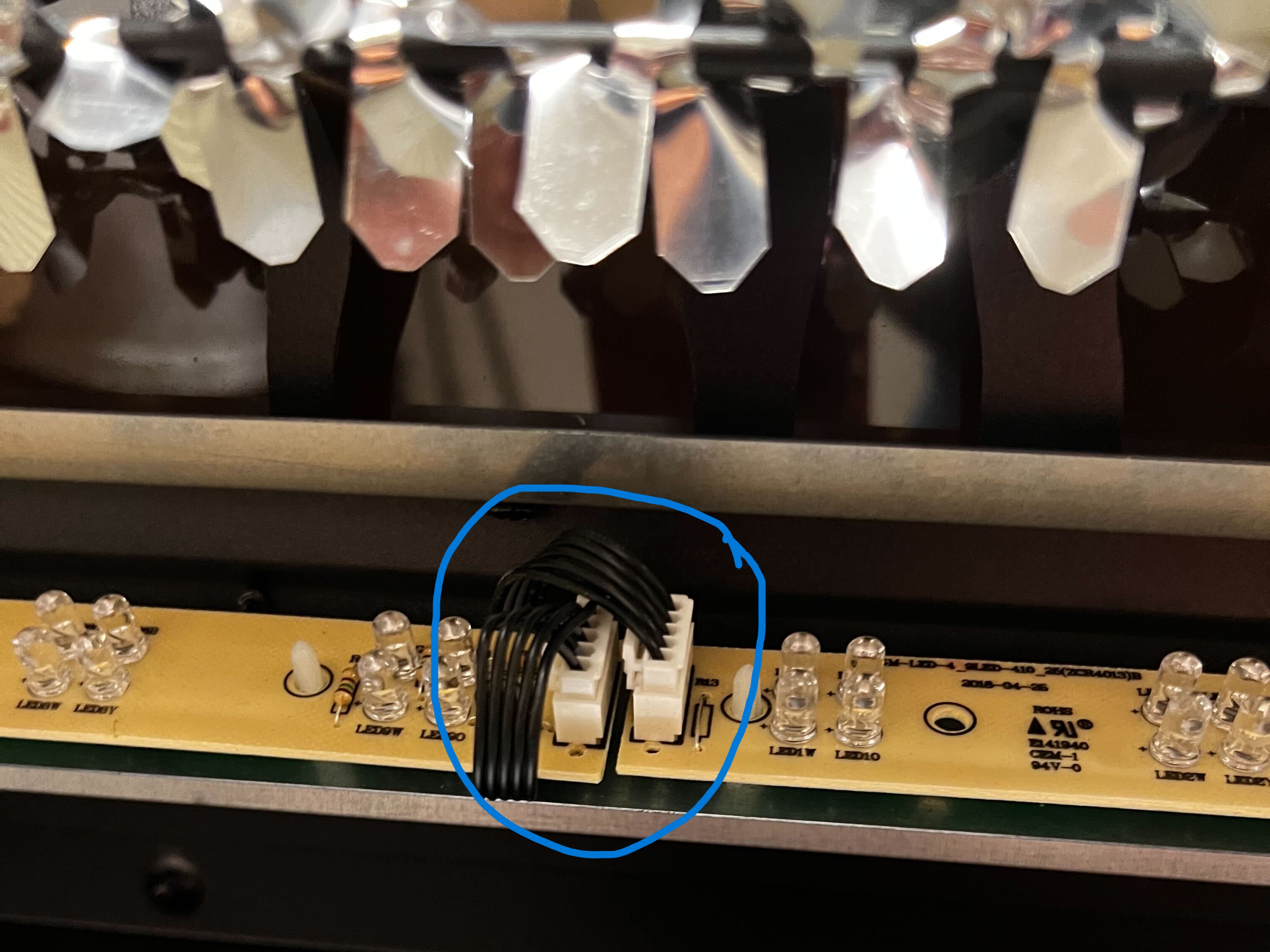

LED Light strip connectors

6. Once the light strip is unplugged, locate the 2 standoffs holding each light strip to the

fireplace frame.

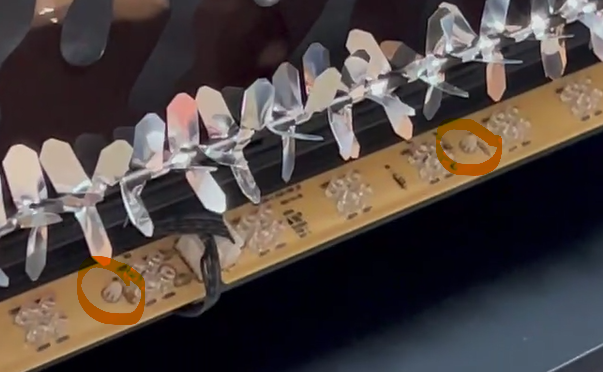

Clips holding LED light strip in place

7. Using a pair of needle-nose plyers, pinch each standoff and lift the light strip UP to

unhook the light strip from the standoffs.

8. Once the defective light strip is removed, install the new strip and test before closing

the fireplace back up.

Video Instructions:

For video instructions on replacing the flame LED light strips on your Sideline Series Electric Fireplace, click on the following link:
