How To: Reinstall The Flame Rod In The Sideline Elite Series Electric Fireplace

Modified on Wed, 13 Nov at 11:54 AM

Problem: There is a rattling noise when the flames are moving. This is most likely due to the flame rod coming out of it's socket.

Solution: Reinstall the flame rod.

Models Supported:

80052 - Forte Elite 40"

80042 - Elite 42"

80036 - Elite 50"

80037 - Elite 60"

80038 - Elite 72"

80050 - Elite 84"

80044 - Elite 100"

Instructions

1. Turn Off Sideline Elite Fireplace.

2. Remove the glass panel from the fireplace by removing the 2 screws holding the panel in place.

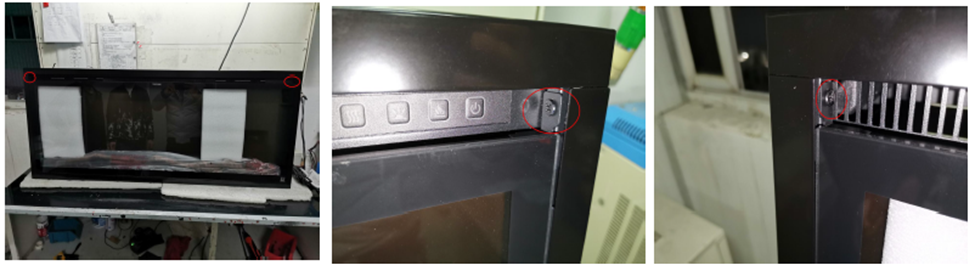

Remove screws that secure glass panel

3. Once the glass panel is removed, remove the firelog/glass crystals and 2 side pieces inside the fireplace opening.

Remove screws holding 2 side pieces in place

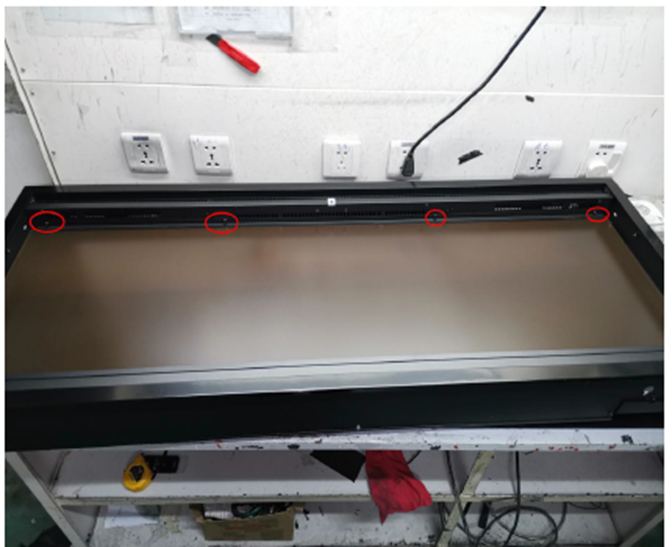

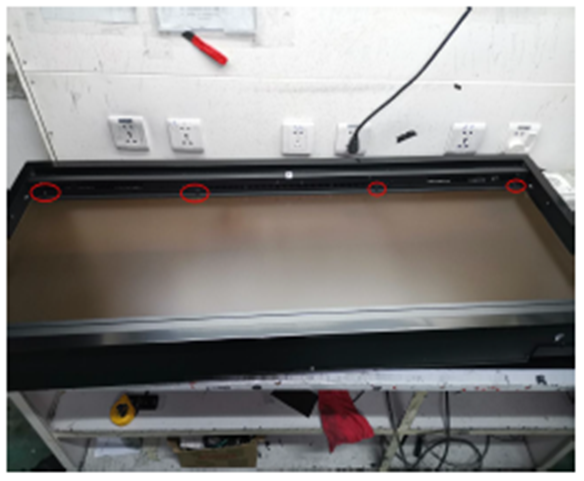

4. Remove the 4 screws holding the bar at the top of the flame display board.

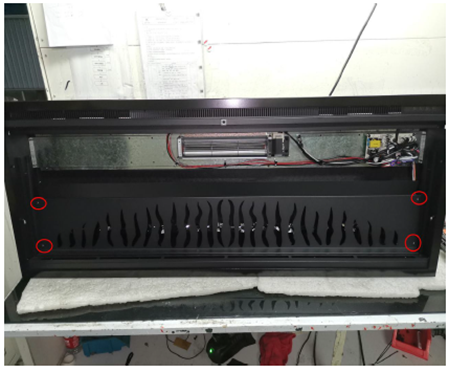

4 screws securing bracket that holds flame display board

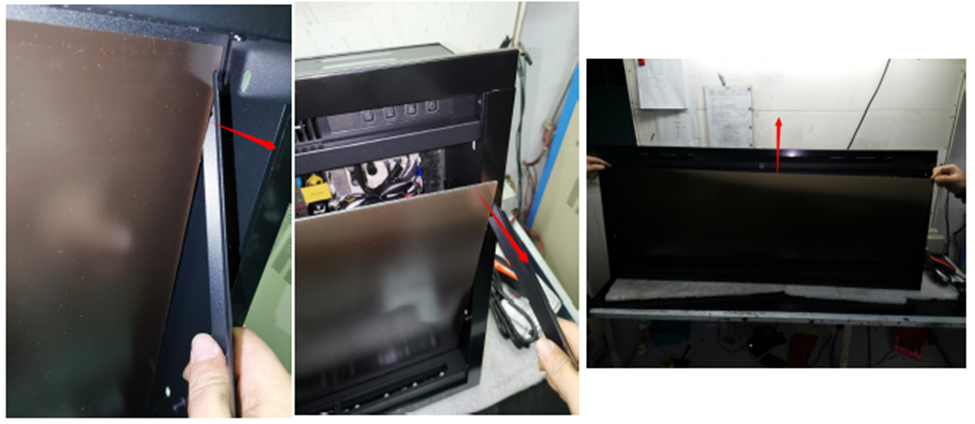

5. Once the bar is removed, remove the flame display board.

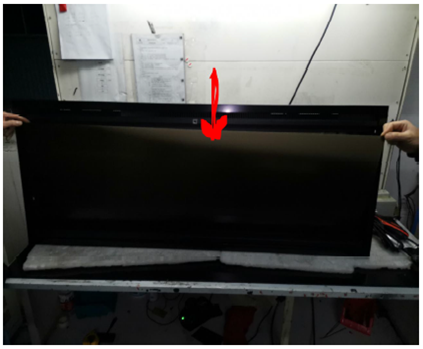

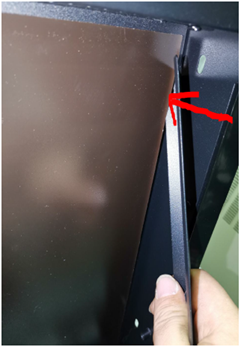

Removing flame display board

6. After removing the flame display board, remove the 4 screws holding the flame panel in place.

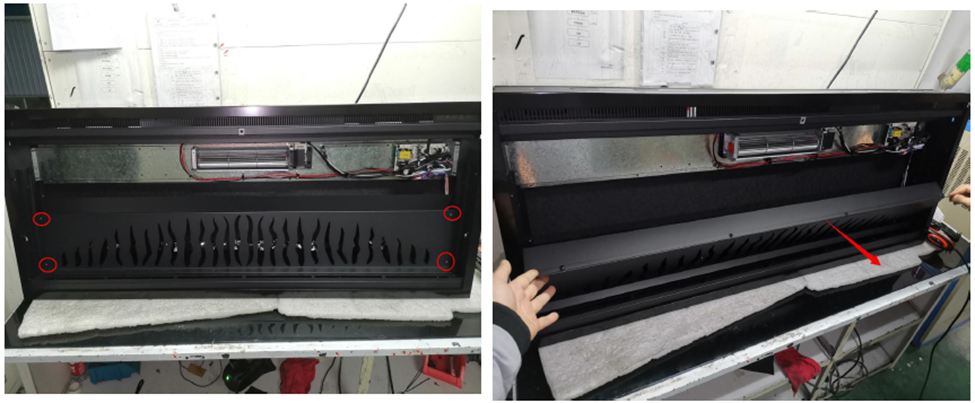

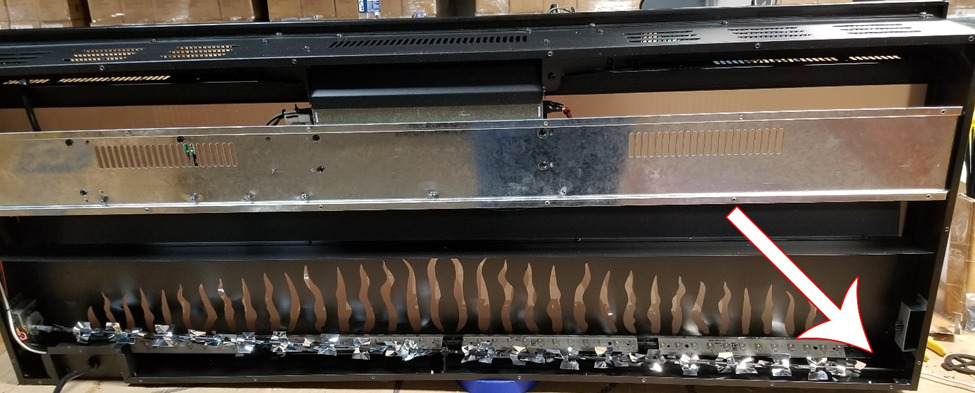

Removing the flame panel

7. After removing the flame panel, locate the end of the flame rod that is out of its socket.

**Please note, as you are opening the unit from the front, the flame rod socket will be on the left side when looking at the unit. The pictures below show the back panel of the fireplace removed.

Locating gromet that holds flame rod

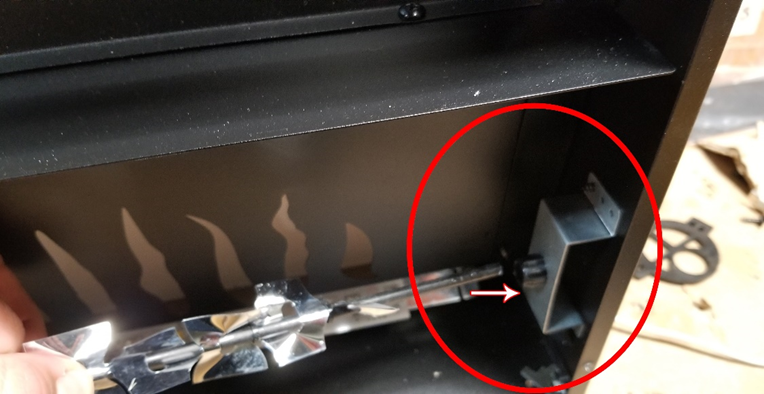

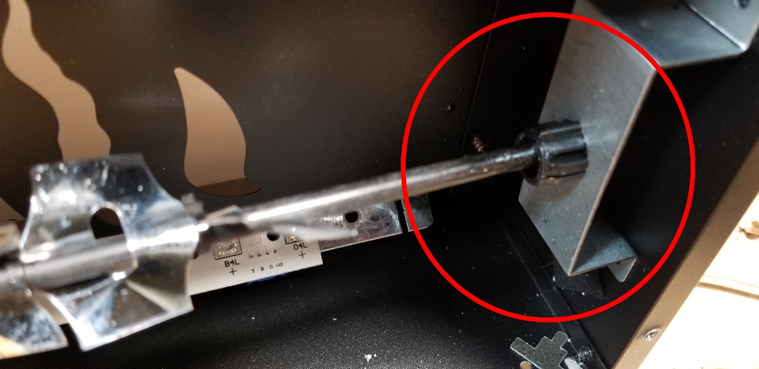

Flame rod out of socket

8. Re-insert the flame rod back into the socket.

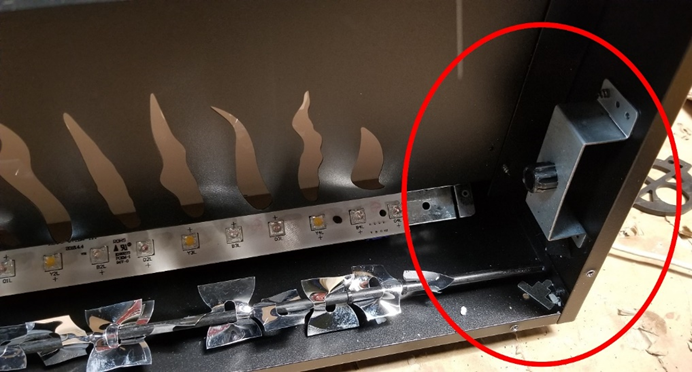

Showing flame rod and flame rod socket

Reinstalling flame rod in flame rod gromet

9. Once reinstalled, test the fireplace to be sure that there is no noise.

10. Once satisfied, reinstall the flame panel and refasten the 4 screws holding the panel in place.

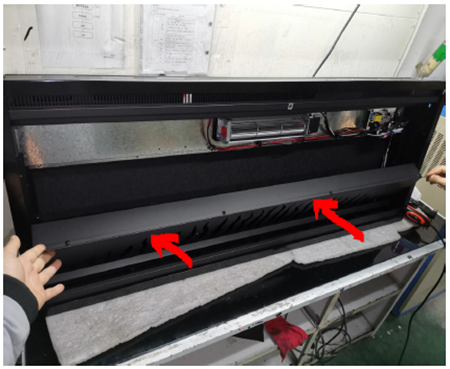

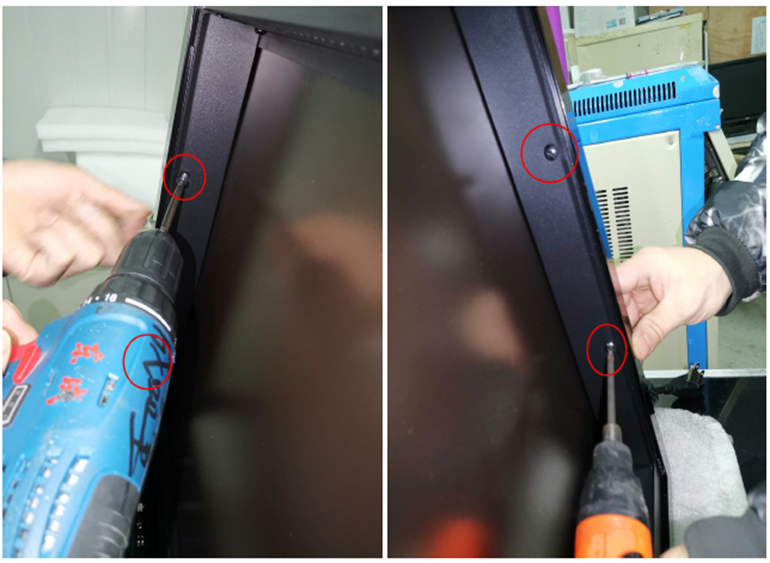

Reinstall flame panel Reinstall screws holding flame panel in place

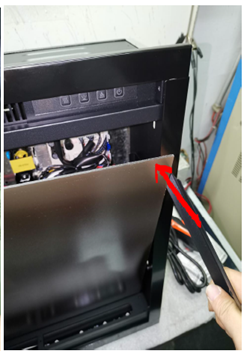

11. Once the flame panel is installed, reinstall the flame display board and the bar holding the bar in place.

12. Reinstall the bar at the top of the flame display panel.

13. Reinstall the 2 side panels.

Reinstall 2 side panels

14. Once the side panels are reinstalled, reinstall the log/crystals and front glass panel.

Reinstall glass panel and screws
