How To: Reinstall The Flame Rod In The Sideline Elite Pro Series Electric Fireplace

Modified on Wed, 13 Nov at 11:54 AM

Problem: There is a rattling noise when the flames are moving. This is most likely due to the flame rod coming out of it's socket.

Solution: Reinstall the flame rod.

Models Supported:

80057 - Elite Pro 50"

80058 - Elite Pro 60"

80059 - Elite Pro 72"

Instructions

1. Turn Off Sideline Elite Pro Fireplace.

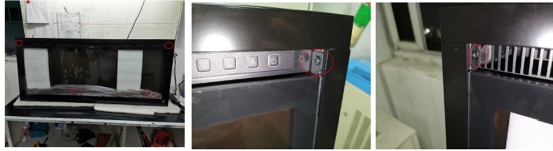

2. Remove the glass panel from the fireplace by removing the 2 screws holding the panel in place.

3. Once the glass panel is removed, remove the firelog/glass crystals and 2 side pieces inside the fireplace opening.

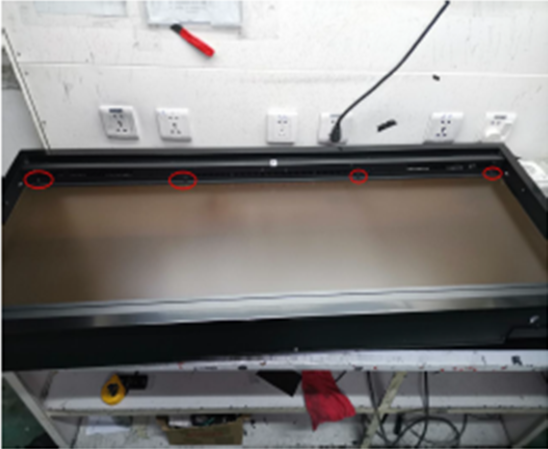

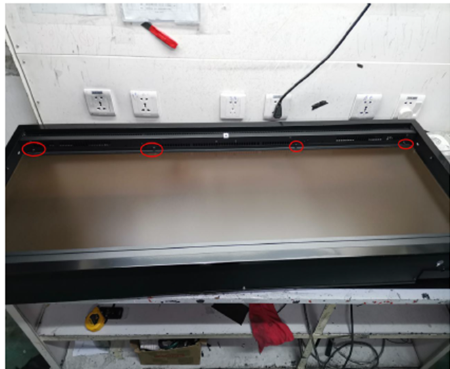

4. Remove the 4 screws holding the bar at the top of the flame display board.

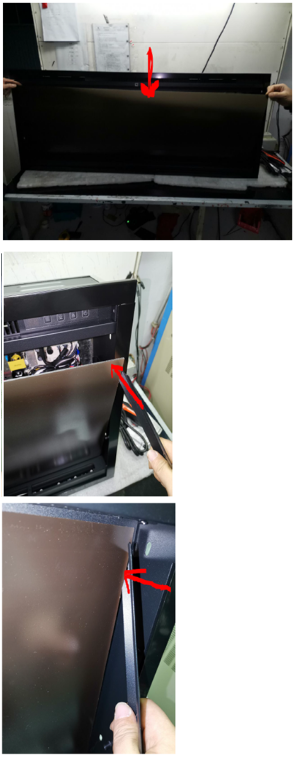

5. Once the bar is removed, remove the flame display board.

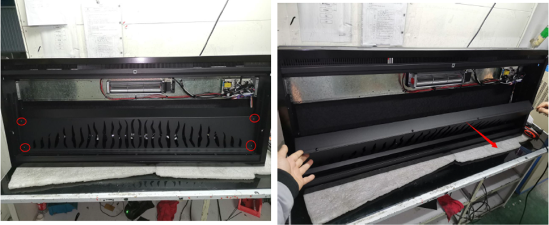

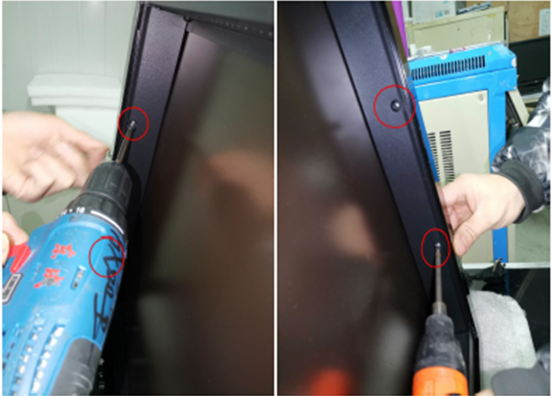

6. After removing the flame display board, remove the 4 screws holding the flame panel in place.

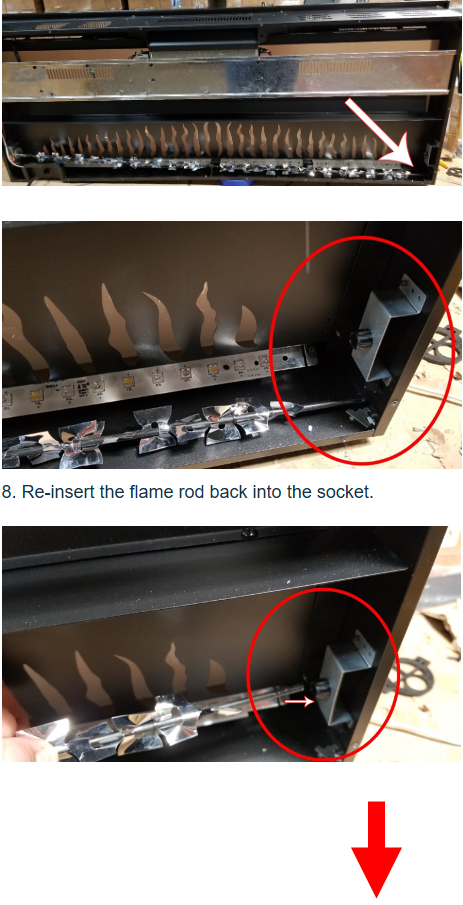

7. After removing the flame panel, locate the end of the flame rod that is out of its socket.

**Please note, as you are opening the unit from the front, the flame rod socket will be on the left side when looking at the unit. The pictures below show the back panel of the fireplace removed.

9. Once reinstalled, test the fireplace to be sure that there is no noise.

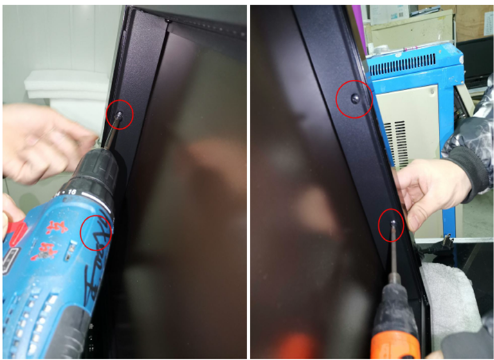

10. Once satisfied, reinstall the flame panel and refasten the 4 screws holding the panel in place.

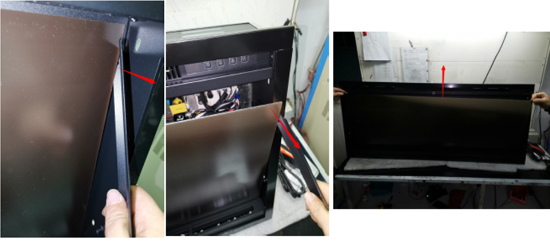

11. Once the flame panel is installed, reinstall the flame display board and the bar holding the bar in place.

12. Reinstall the bar at the top of the flame display panel.

13. Reinstall the 2 side panels.

14. Once the side panels are reinstalled, reinstall the log/crystals and front glass panel.

Video Instructions:

For video instructions on re-installing the flame rod on your Sideline Elite Pro Series Electric Fireplace, click on the following link:

Video Instructions for Reinstalling Flame Rod on Sideline Elite Pro Series Electric Fireplace

Need More Help?

Please contact our technical support team at 800-215-1990 for further troubleshooting or click the following link to file a support ticket:

https://touchstonehomeproducts.freshdesk.com/support/tickets/new
