How To: Remove The Glass Panel On The Sideline Infinity Series Electric Fireplace

Modified on Mon, 15 Apr at 11:52 AM

The following instructions describe how to remove the glass panel from the Sideline Infinity Series Electric Fireplace.

Models Supported:

80045 - Sideline Infinity 50"

80046 - Sideline Infinity 60"

80051 - Sideline Infinity 72"

Tools Required:

- Philips-head screw driver

Instructions:

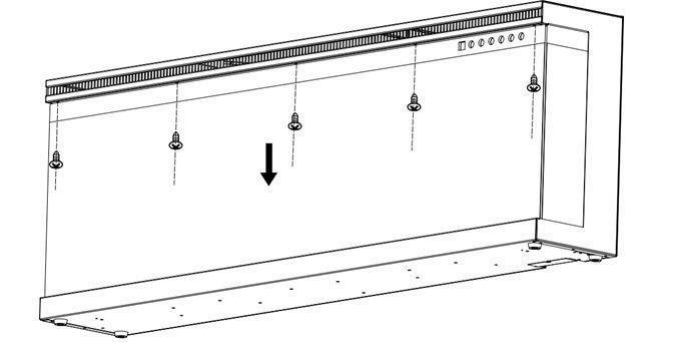

1. There are 5 screws that fasten the glass panel bracket to the fireplace. Remove all 5 screws to remove the glass panel.

Removing 5 glass panel screws

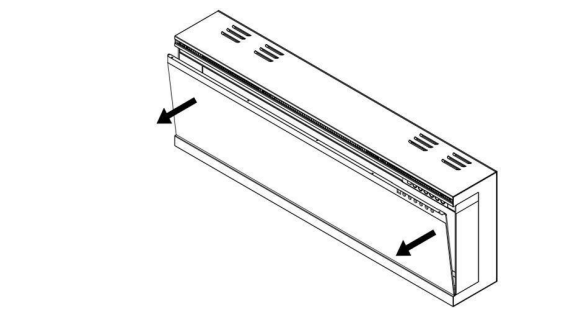

2. After removing screws, tilt glass panel away from the fireplace. Lift the glass panel away from the fireplace to remove the glass panel. Store the glass panel in a soft, dry place

Removing glass panel from fireplace.

CAUTION: It is recommended that 2 people remove the glass panel to minimize chance of breakage.

Video Instructions:

For video instructions on removing the glass panel on your Sideline Infinity Series Electric Fireplace, click on the following link:

Video instructions for removing the glass panel on your Sideline Infinity Series Electric Fireplace
