The following instructions describe how to remove the glass panel from the Sideline Infinity Pro Series Electric Fireplace.
Models Supported:
80064 - Sideline Infinity Pro Forte 40"
80045 - Sideline Infinity Pro 50"
80046 - Sideline Infinity Pro 60"
80051 - Sideline Infinity Pro 72"
80066 - Sideline Infinity Pro 84"
Tools Required:
- Philips-head screw driver
Instructions:

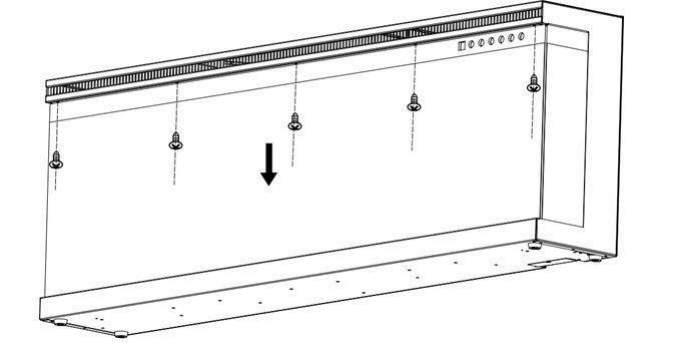

1. There are 5 screws that fasten the glass panel bracket to the fireplace. Remove all 5 screws to remove the glass panel.

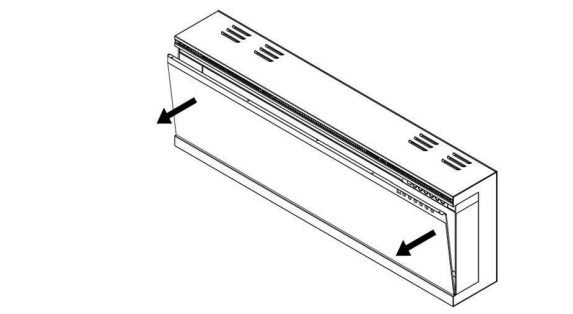

2. After removing screws, tilt glass panel away from the fireplace. Lift the glass panel away from the fireplace to remove the glass panel. Store the glass panel in a soft, dry place
CAUTION: It is recommended that 2 people remove the glass panel to minimize chance of breakage.
Video Instructions:
For video instructions on removing the glass panel on your Sideline Infinity Pro Series Electric Fireplace, click on the following link:
Need More Help?
Please contact our technical support team at 800-215-1990 for further troubleshooting or click the following link to file a support ticket:
https://touchstonehomeproducts.freshdesk.com/support/tickets/new
