The following instructions describe how to install the glass panel from the Sideline Elite Pro Series Electric Fireplace.
Models Supported:
80057 - Elite Pro 50"
80058 - Elite Pro 60"
80059 - Elite Pro 72"
Tools Required:
- Philips-head screw driver
Instructions:
To install the glass panel, please follow the instructions below:

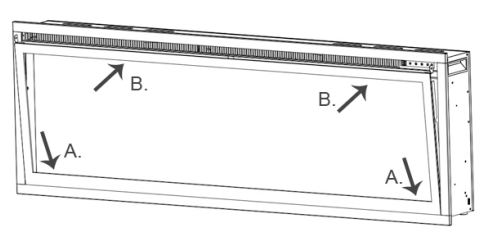

1. Fit the bottom of the glass panel into the slot in the bottom of the firebox (A). Once in place, push the top of the glass panel back toward the firebox (B)

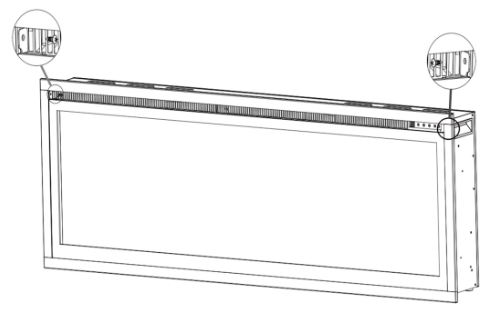

2. Once the glass panel is in place, secure the glass panel to the firebox using the 2 screws removed in Remove the Glass Panel section.
Your Sideline Elite® Series fireplace is now ready for use!
Video Instructions:
For video instructions on installing the glass panel on your Sideline Elite Series Electric Fireplace, click on the following link:
Video Instructions for Installing Glass Panel on Sideline Elite Pro Series Electric Fireplace
Need More Help?
Please contact our technical support team at 800-215-1990 for further troubleshooting or click the following link to file a support ticket:
https://touchstonehomeproducts.freshdesk.com/support/tickets/new
