How To: Install Ember Bed Lights On The Sideline Elite Pro Series Electric Fireplace

Modified on Thu, 19 Feb at 4:57 PM

The following instructions describe how to install the Ember Bed Lights on the Sideline Elite Pro Series Electric Fireplace.

Models Supported:

80061 - Elite Pro 42"

80057 - Elite Pro 50"

80058 - Elite Pro 60"

80059 - Elite Pro 72"

80062 - Elite Pro 84"

80063 - Elite Pro 100"

Tools Required:

- Philips-head screw driver

1. Remove the glass panel, please follow the instructions below:

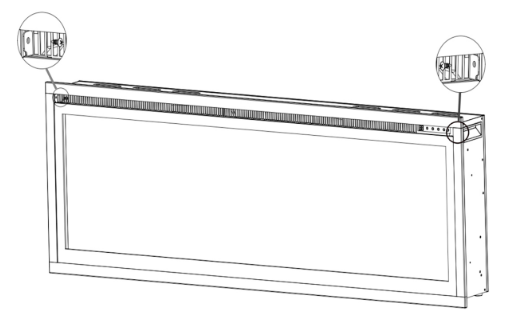

1. There are 2 screws in the top vent opening, one on the far left and one on the far right that secure the left and right trim pieces in place. Remove both screws to remove the trim pieces.

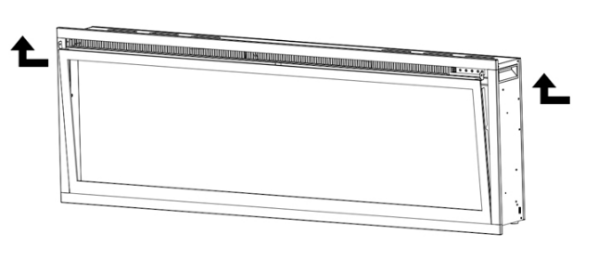

2. After removing screws, tilt glass panel away from the fireplace. Lift the glass panel away from the fireplace to remove the glass panel. Store the glass panel in a soft, dry place.

CAUTION: It is recommended that 2 people remove the glass panel to minimize chance of breakage.

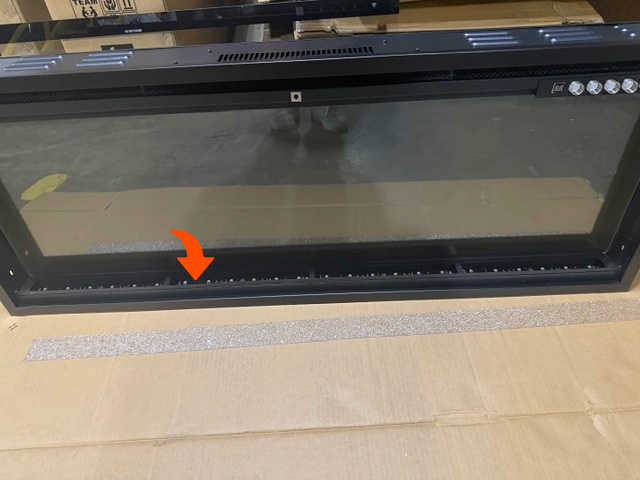

2. Remove the crystal strip

3. Remove the Ember Bed Light Strips with plyers

4. Install and Test the new Ember Bed Light Strips

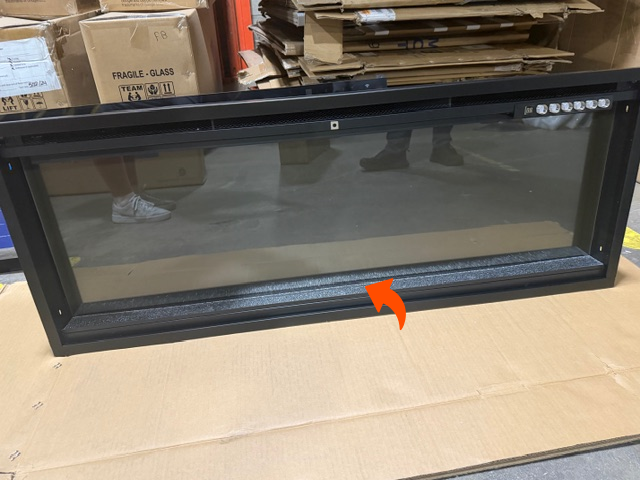

5. Install the Crystal Strip

6. Install the glass panel, please follow the instructions below:

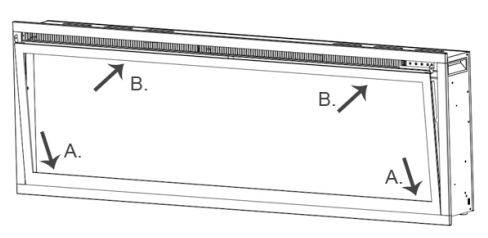

1. Fit the bottom of the glass panel into the slot in the bottom of the firebox (A). Once in place, push the top of the glass panel back toward the firebox (B)

2. Once the glass panel is in place, secure the glass panel to the firebox using the 2 screws removed in Remove the Glass Panel section.

Need More Help?

Please contact our technical support team at 800-215-1990 for further troubleshooting or click the following link to file a support ticket:

https://touchstonehomeproducts.freshdesk.com/support/tickets/new
