Reinstalling Outer Trim Pieces – Sideline Elite Pro Series Fireplace

Tools Needed:

Instructions

1. Turn Off Sideline Elite Pro Fireplace

2. Remove fireplace from wall and unplug the fireplace.

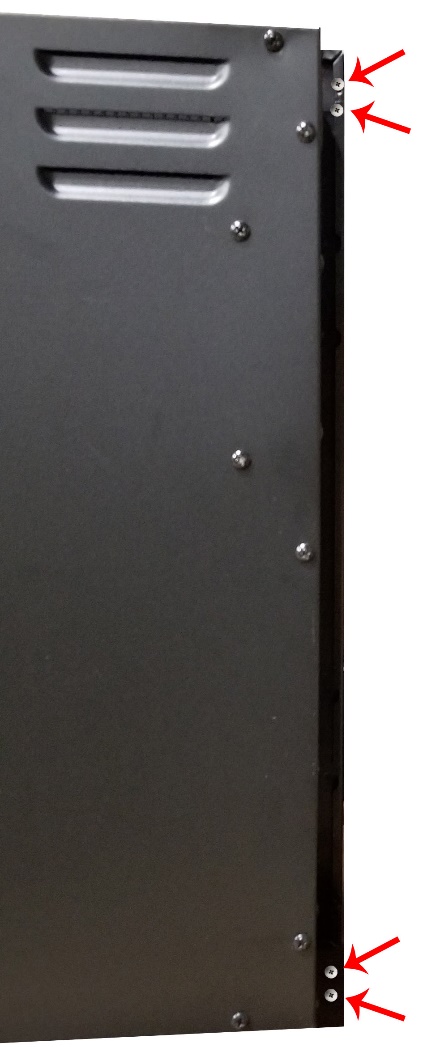

3. Looking at the fireplace from the back, remove the 4 screws holding the trim pieces in place on the left side of the fireplace.

4.  Remove the 4 screws holding the trim pieces in place on the right side of the fireplace.

Top/Bottom Trim Pieces

Remove the screws securing the top/bottom trim pieces to the fireplace as shown below:

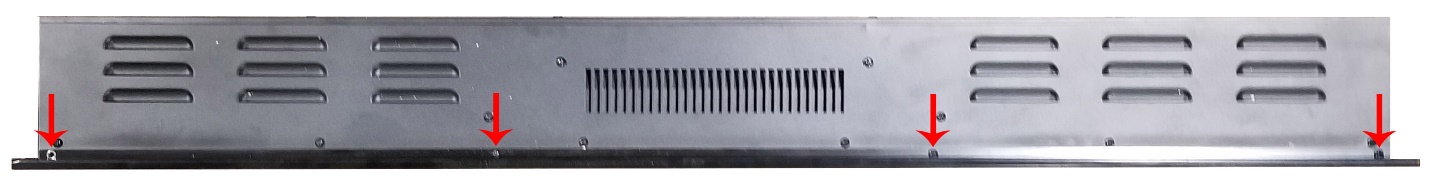

Top of Fireplace

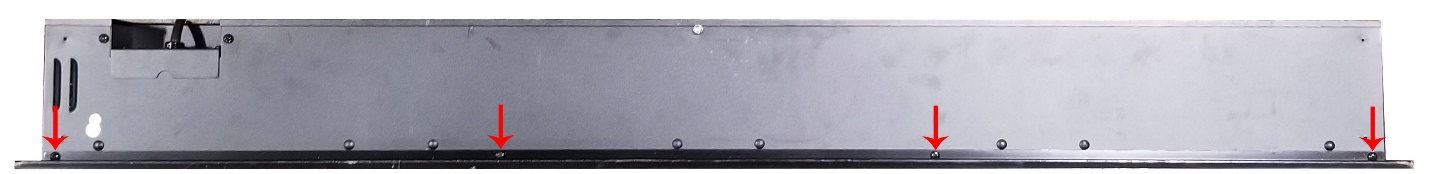

Bottom of Fireplace

Side Trim Pieces

Remove the screws securing the side trim pieces to the fireplace as shown below:

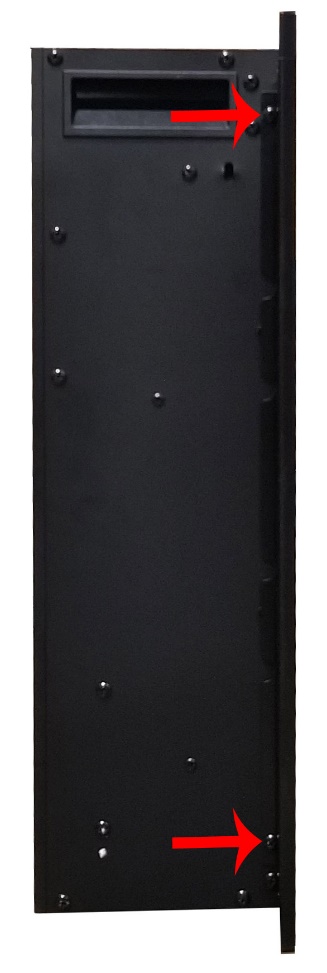

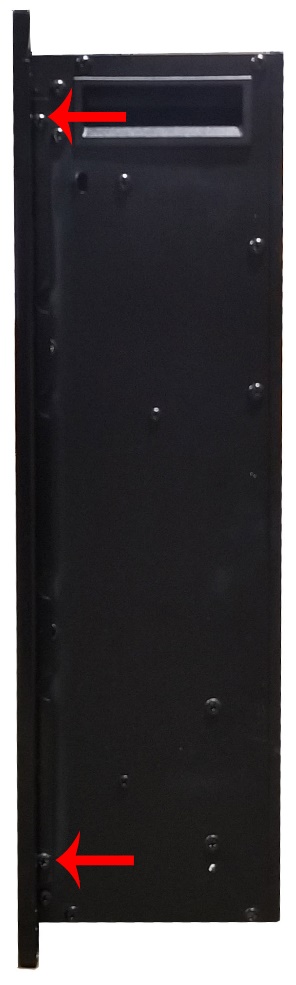

                       Left Side of Fireplace                                       Right Side of Fireplace

**If you have any questions, contact the technical support department at Touchstone Home Products at 800-215-1990 option 3.
