Removing Downlight Light Strips in Elite Pro Fireplace

Modified on Wed, 18 Dec at 11:52 AM

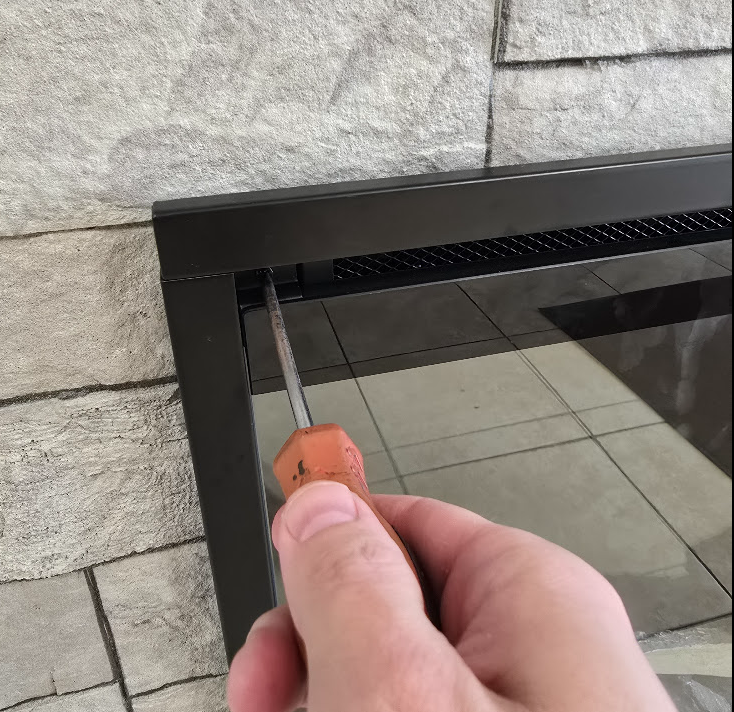

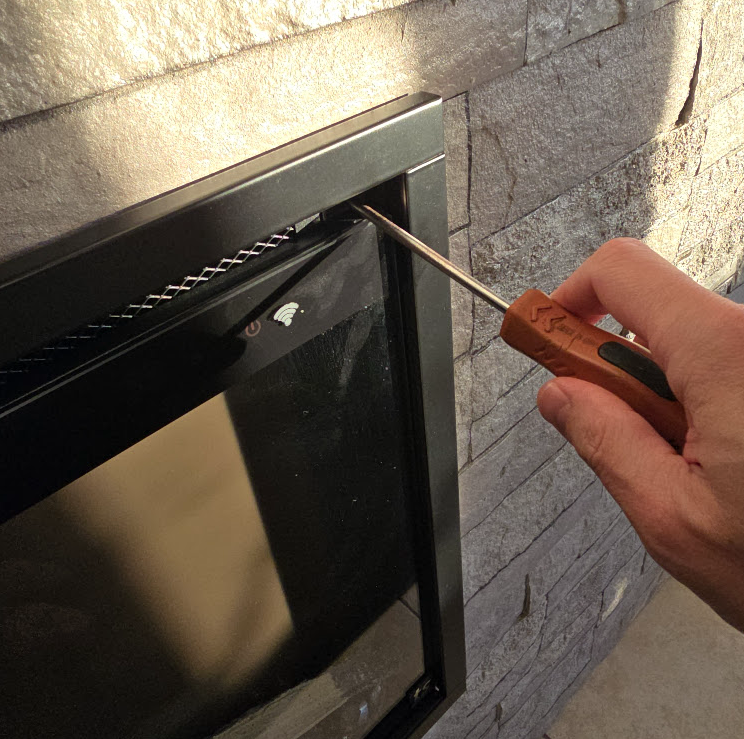

1. Unscrew two screws securing the glass panel to the firebox.

A hand holding a screwdriver
Description automatically generated    A hand holding a screwdriver
Description automatically generated




2. Gently open the fireplace by pulling the top part of the glass panel outwards. (The glass panel is being held by a magnet)

3. Securely hold the glass panel and lift it upwards to remove it from the fireplace, then gently place it on a soft surface.

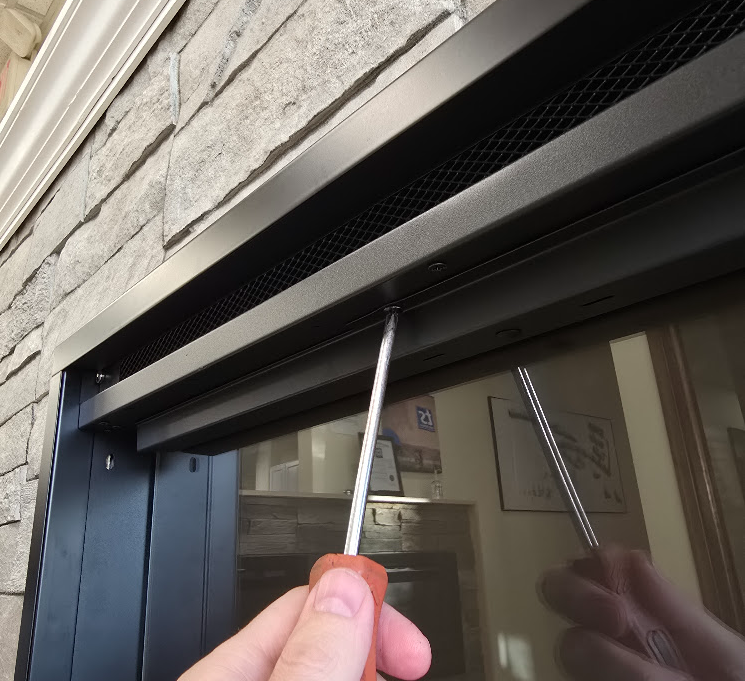

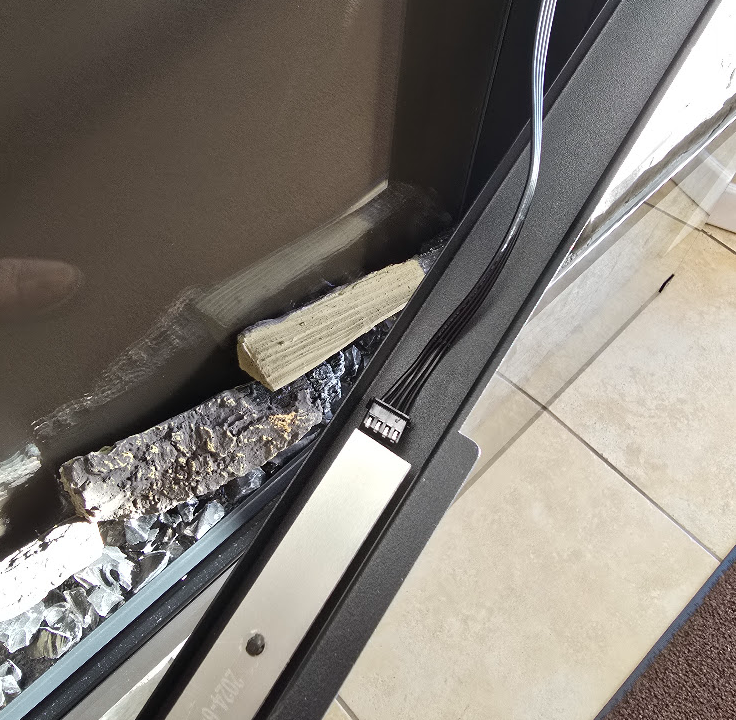

4. Now, unscrew the screws holding the downlight box. Inside of the downlight box, you will find LED light strips connected to the fireplace.

A hand holding a screwdriver
Description automatically generated                  A broken piece of paper next to a window
Description automatically generated

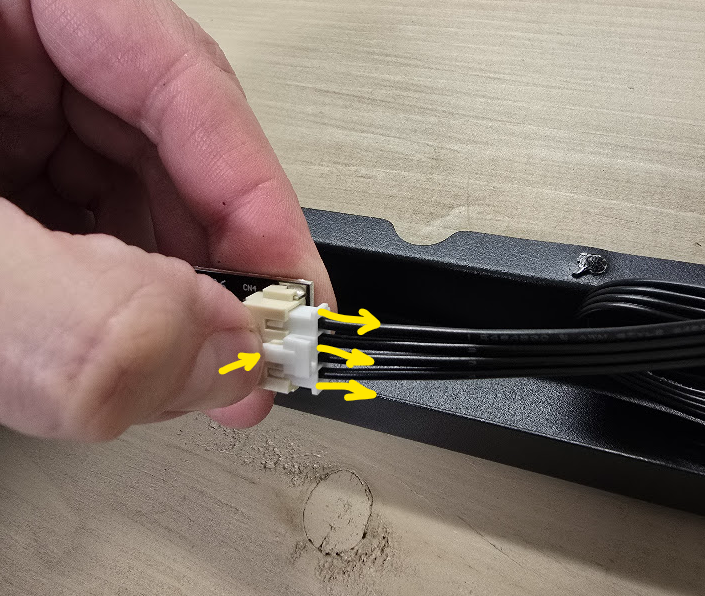

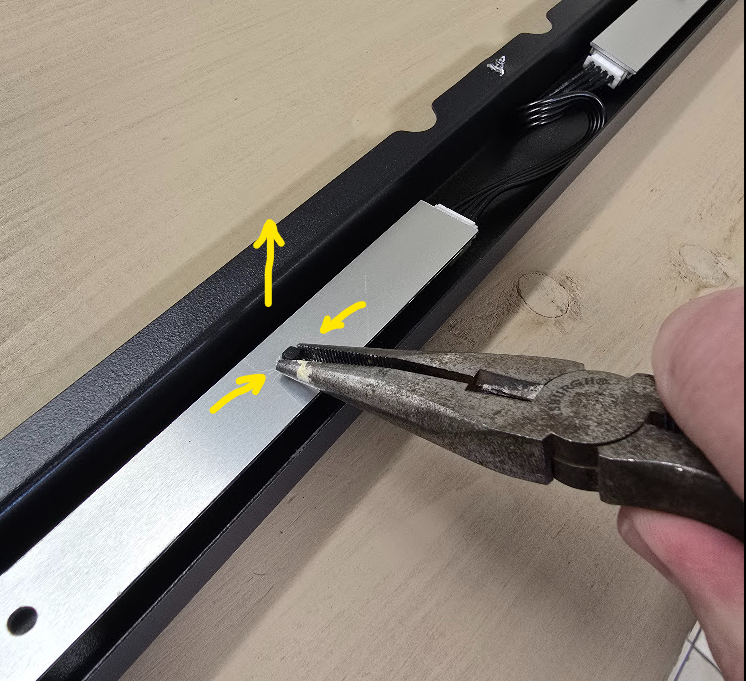

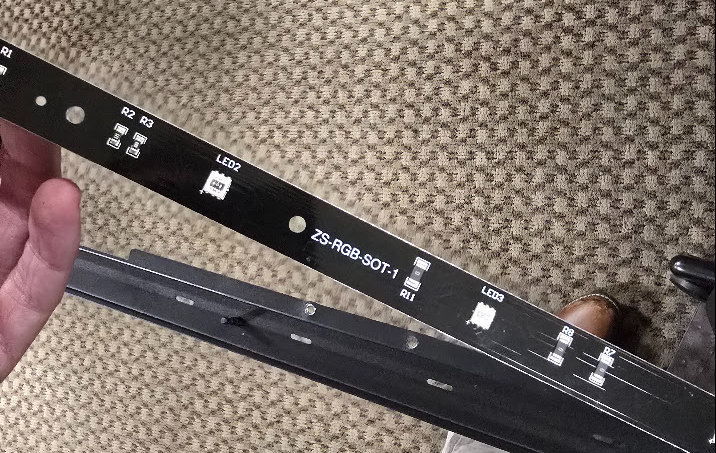

5. There are 2 plastic clips that hold light strips attached to the downlight box. To remove the light strip, squeeze the head of each clip with pliers and gently pull the light strip to take it off the spacer. You will then be able to disconnect it from the fireplace.

A hand holding pliers to a metal piece of metal
Description automatically generated  A hand holding a black device with wires
Description automatically generated

A hand holding a black rectangular object
Description automatically generated
