Lifts Being Installed in the Drop Down Application

Modified on Wed, 29 Jan at 2:03 PM

23401- Whisper Lift II PRO Advanced Smart Lift Mechanism
23501- Whisper Lift II PRO Advanced Swivel Lift Mechanism
23601- Whisper Lift PRO XL Advanced Lift Mechanism
23602- Whisper Lift PRO XL Swivel Lift Mechanism

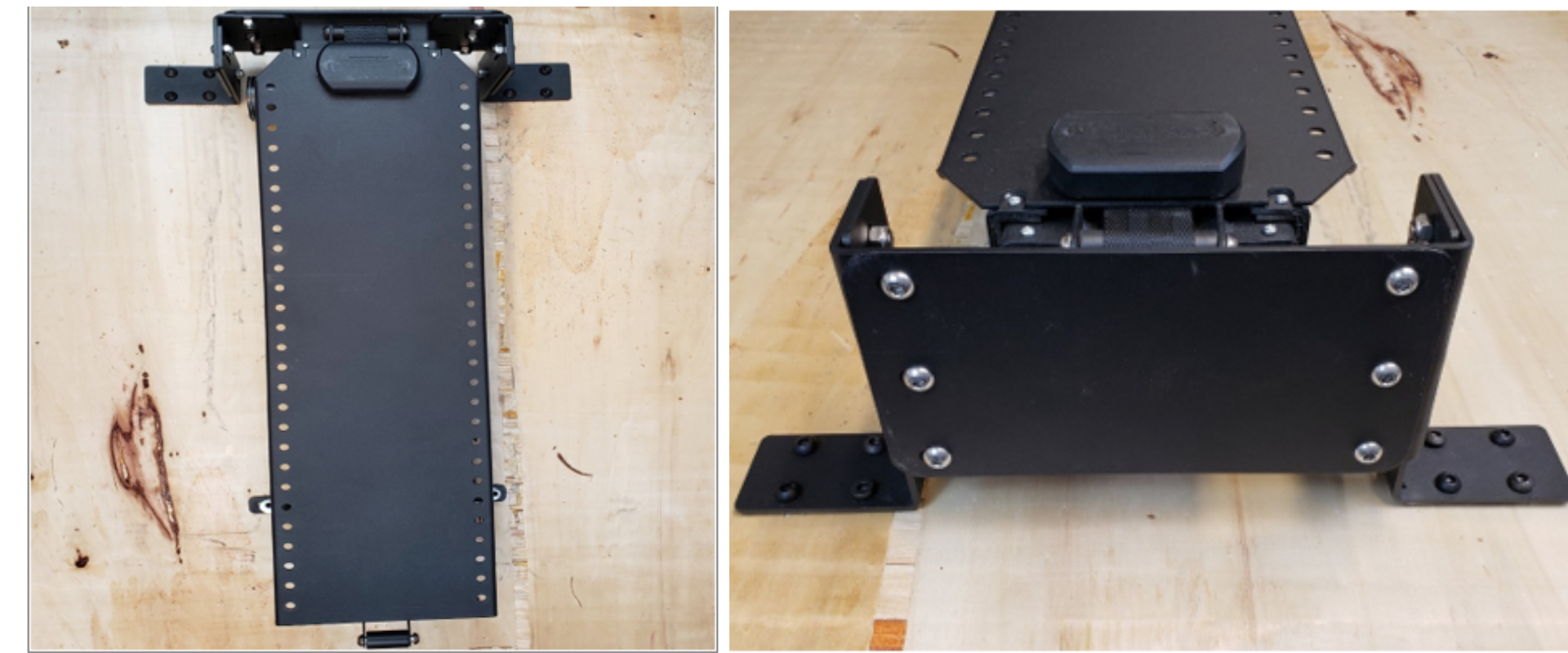

Designed for drop down installations - safely mount lift inverted and lower TV down to desired viewing height.

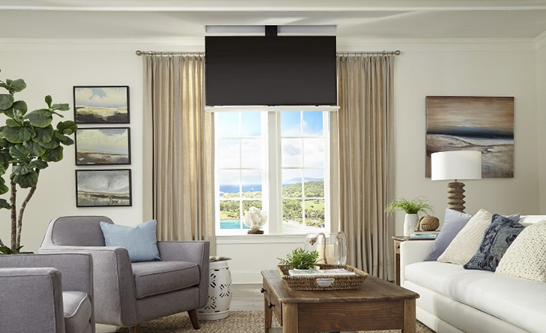

These lifts can also be mounted to your ceiling or wall and drop your flat screen downward.

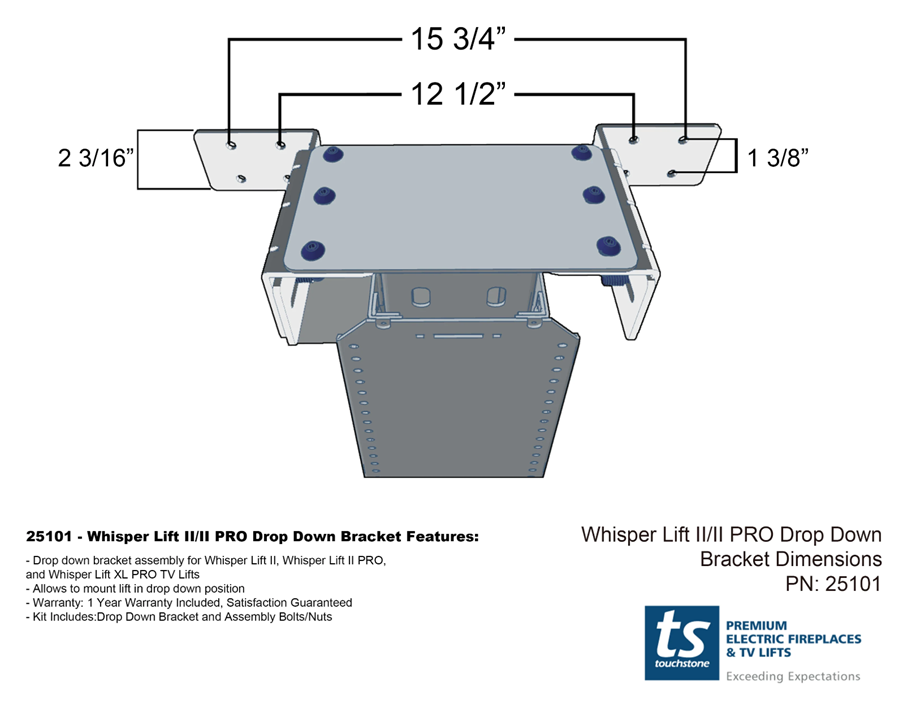

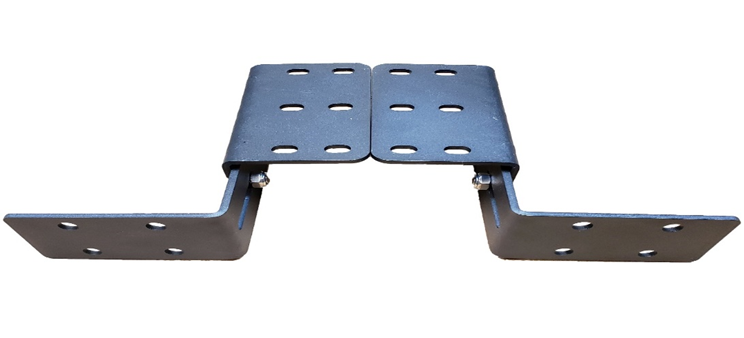

25101 = Whisper Lift 2 PRO and Whisper Lift XL Pro Drop Down Bracket

These lifts are designed for drop-down installations, allowing you to mount the lift inverted and lower the TV to your preferred viewing height. It's crucial to consider the following general recommendations for safe installation:

Structural support: Ensure the ceiling can support the combined weight of the TV, lift mechanism, and bracket. Consult a structural engineer if necessary.
Proper mounting hardware: Use appropriate screws, bolts, and anchors rated for the total weight of the system and suitable for your ceiling material (e.g., wood, concrete, metal).
Electrical safety: Follow local electrical codes and consider professional installation for power connections.
Clearance: Ensure adequate clearance for the TV's full range of motion and any nearby obstacles.
Regular maintenance: Periodically check the mounting hardware and lift mechanism for any signs of wear or loosening.
Weight limits: Adhere to the weight limits specified for both the lift mechanism and the 25101 bracket.
Professional installation: Consider hiring a professional installer experienced with drop-down TV lifts to ensure proper and safe installation.

For more detailed instructions on securing the bracket and specific cautions for ceiling mounting, it would be best to consult the full installation manual or contact Touchstone directly.

Click here to view the manual.
