How To: Replace the Ember Bed Lights on The Sideline Infinity Series Electric Fireplace

The following instructions describe how to replace the ember bed lights in the Sideline Infinity Series Electric Fireplace.

Models Supported:

80045 - Sideline Infinity 50"

80046 - Sideline Infinity 60"

80051 - Sideline Infinity 72"

Tools Required:

    - Philips-head screw driver

Instructions:

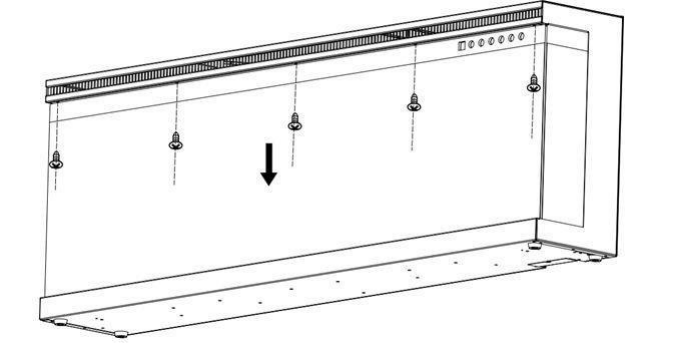

1. There are 5 screws that fasten the glass panel bracket to the fireplace. Remove all 5 screws to remove the glass panel.

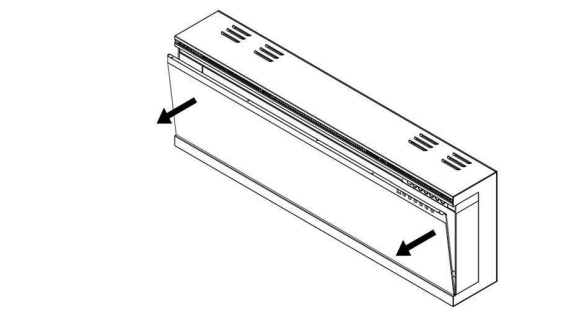

2. After removing screws, tilt glass panel away from the fireplace. Lift the glass panel away from the fireplace to remove the glass panel. Store the glass panel in a soft, dry place

CAUTION: It is recommended that 2 people remove the glass panel to minimize chance of breakage.

2. Remove the crystal strip

3. Remove the ember bed light strip

4. Install the new ember bed light strip and test

5. Install the crystal strip

6. Once completed installing crystal embers or fire log, you are now ready to reinstall the glass panel.

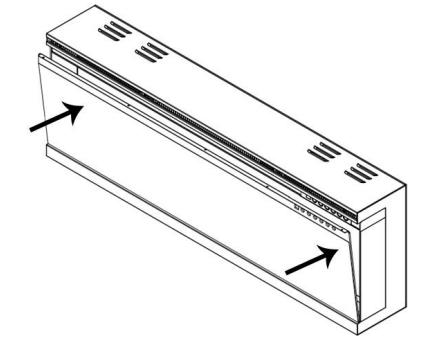

        1. Place the glass panel back inside the fireplace and push the glass panel into place.

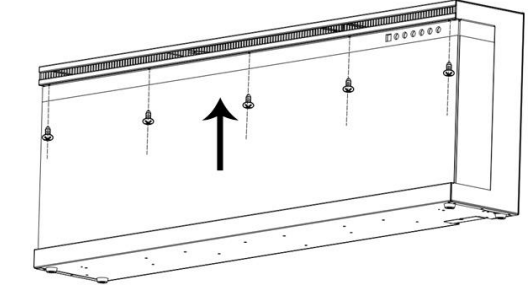

        2. Reattach the screws holding the glass panel in place, as shown below.

Need More Help?

Please contact our technical support team at 800-215-1990 for further troubleshooting or click the following link to file a support ticket:

https://touchstonehomeproducts.freshdesk.com/support/tickets/new
