How To: Install Glass Panel On The Sideline Series Electric Fireplace

The following instructions describe how to install the glass panel on the Sideline Series Electric Fireplace.

Models Supported:

80004 - Sideline 50"

80006 - Forte 40"

80011 - Sideline 60"

80014 - Sideline 36"

80015 - Sideline 72"

80025 - Sideline 45"

80027 - Sideline 40"

80032 - Sideline 100"

80043 - Sideline 84"

Tools Required:

    - Philips-head screw driver

Instructions:

Once you have installed the crystal embers or fire log, you are ready to reinstall the glass panel

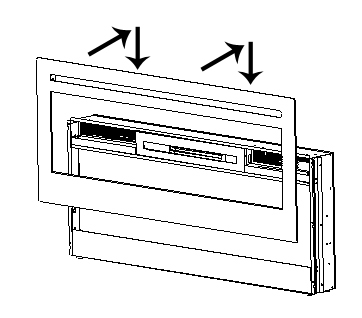

1. The hooks on the back of the glass panels fit into the slots on the side of the firebox.

2.  Once fitted in the slots, the glass panel goes down and locks into place.

3.  You do not need to re-install the screws as they are for shipping purposes only

Video Instructions:

For video instructions on installing the glass panel on your Sideline Series Electric Fireplace, click on the following link:

Instructions For Installing Glass Panel on Sideline Series Electric Fireplace
