Models:
- 2800/3900 SRV PRO WIFI ENABLED 360-DEGREE SWIVEL TV LIFT
- 32820 – 2800 360-DEGREE SWIVEL TV Lift
- 33920 – 3900 360-DEGREE SWIVEL TV Lift
Problem: The lift will not go up or down
Solution: Check the swivel sensor connection
Hooking Up Swivel Sensor Cable Instructions:
Follow the written instructions below or check out the video here:

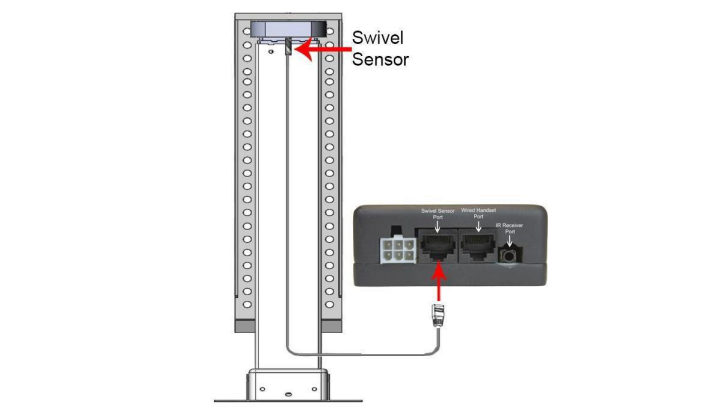

1. Attach the swivel sensor cable to the swivel sensor port (RS232 port) on the control box.

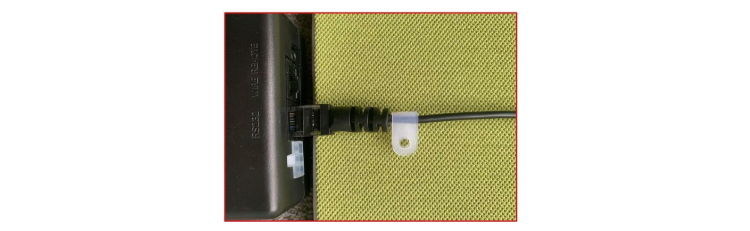

2. Using the cable clips and a ST4x10 wood screw, attach the cable to the cabinet so that the safety plug cable cannot be removed from the control box.
NOTE: Please be sure that the safety sensor cable is connected to the Swivel Sensor port on the control box at all times. The lift will operate WITHOUT the swivel sensor plugged into the Swivel Sensor port on the control box and may cause damage to your lift, TV, or cabinet if the TV is not placed in the home position before operation.
Adjust the sensor so that the red light goes off when the lift is in the HOME POSITION
The lift will not move up or down if the RED Light is on.
