This guide explains how to remove the display panel on Sideline Elite Pro fireplaces.
Models Affected:
80057 Sideline Elite Pro 50”
80058 Sideline Elite Pro 60”
80059 Sideline Elite Pro 72”
80061 Sideline Elite Pro 42”
80062 Sideline Elite Pro 84”
80063 Sideline Elite Pro 100”

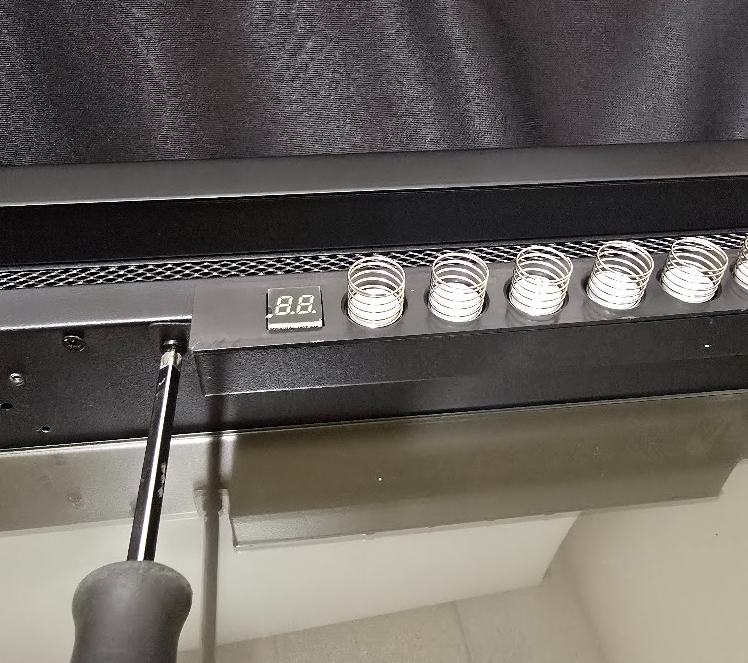

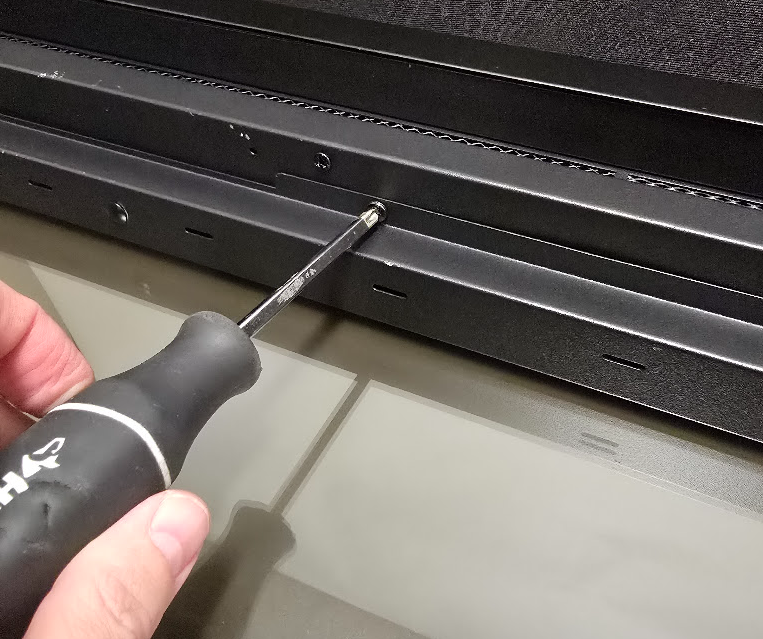

1. Unscrew two screws securing the glass panel (one on each side)
|
|

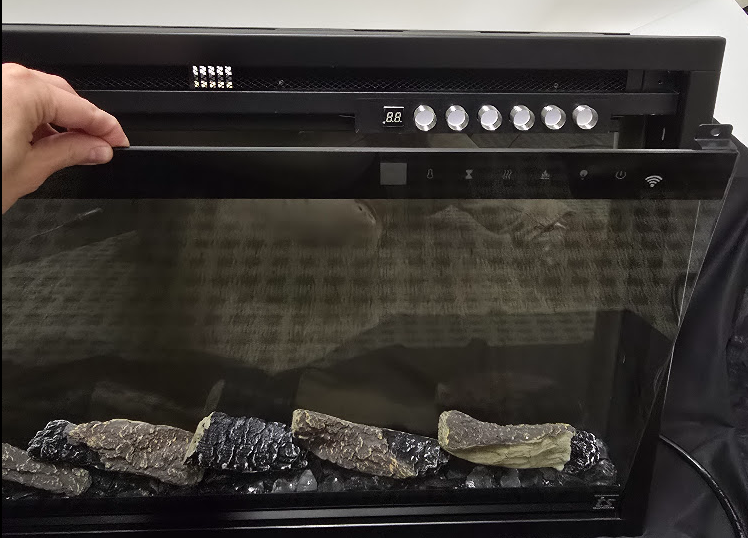

2. Open the glass panel by gently pulling it outwards.

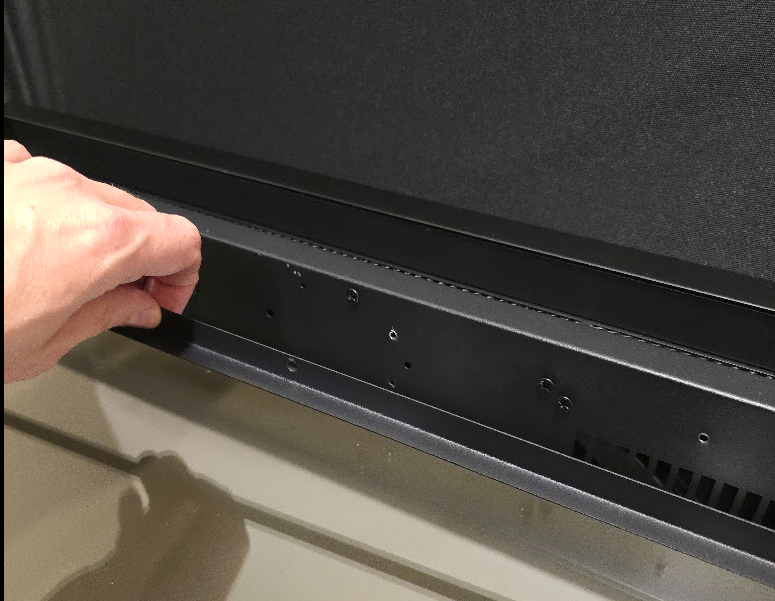

3. Remove the front panel and place it gently on a soft surface.

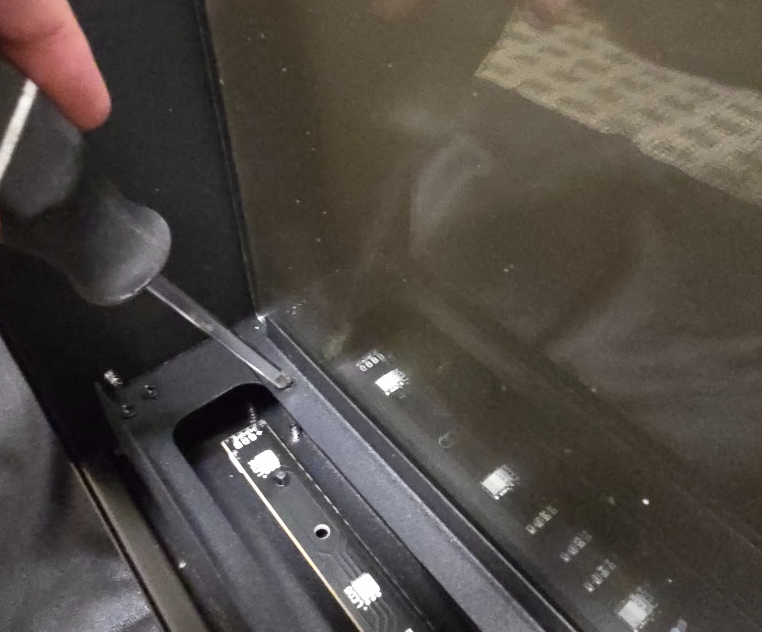

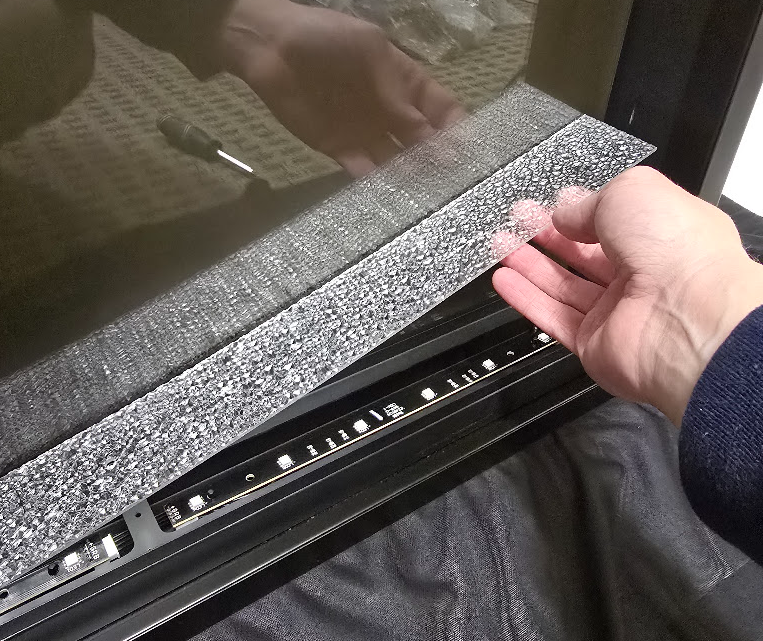

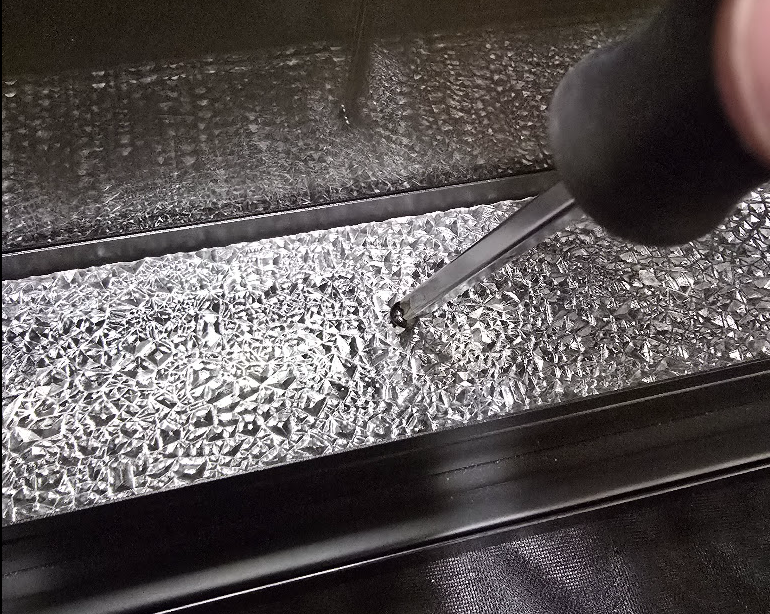

4. Remove the media, unscrew the crystal strip, and remove it
|
|

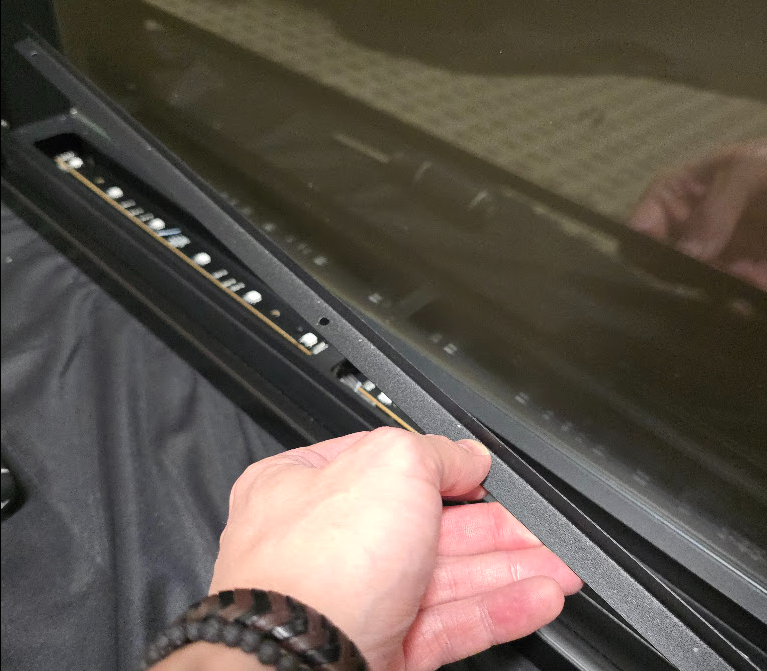

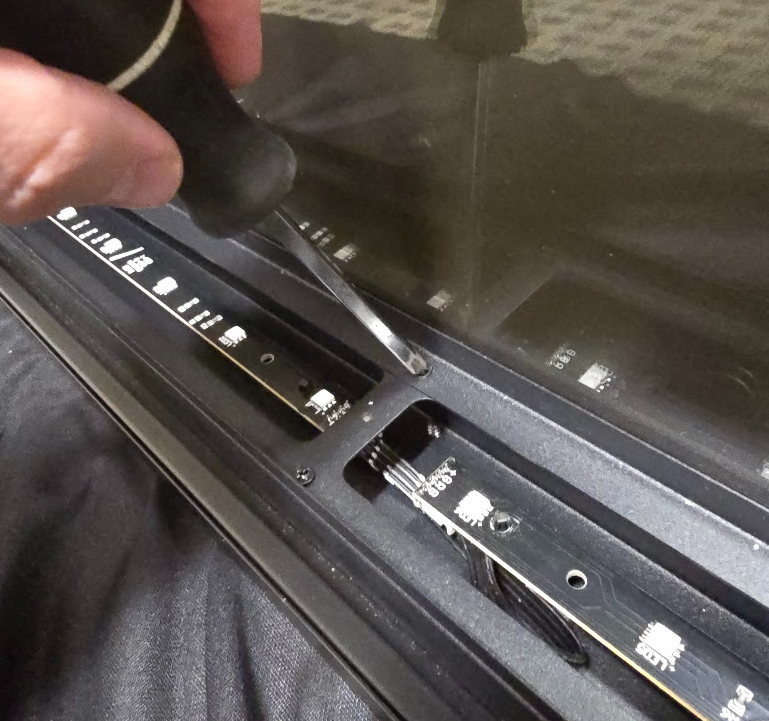

5. Remove the supporting metal strip at the bottom of the display panel by unscrewing the screws that hold it in place.
|
|
|

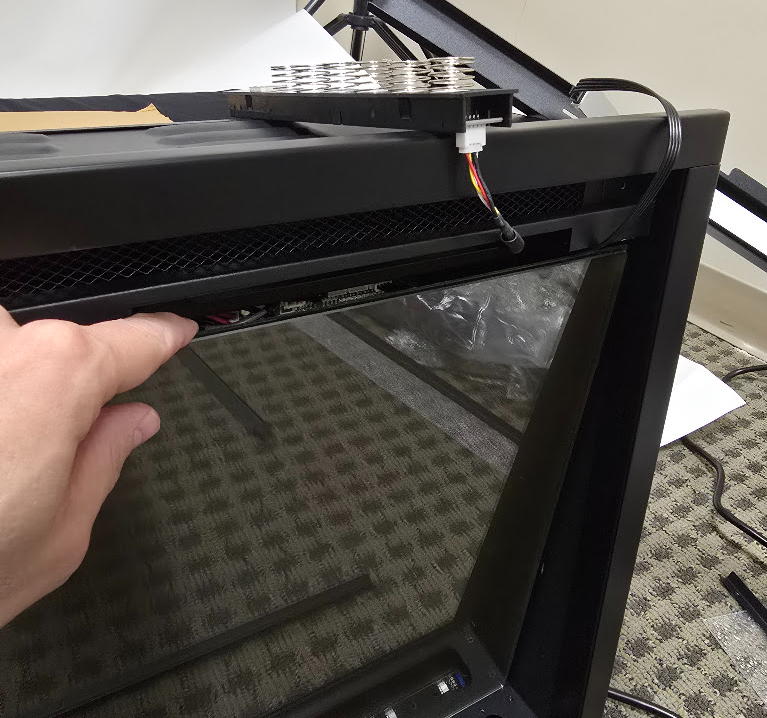

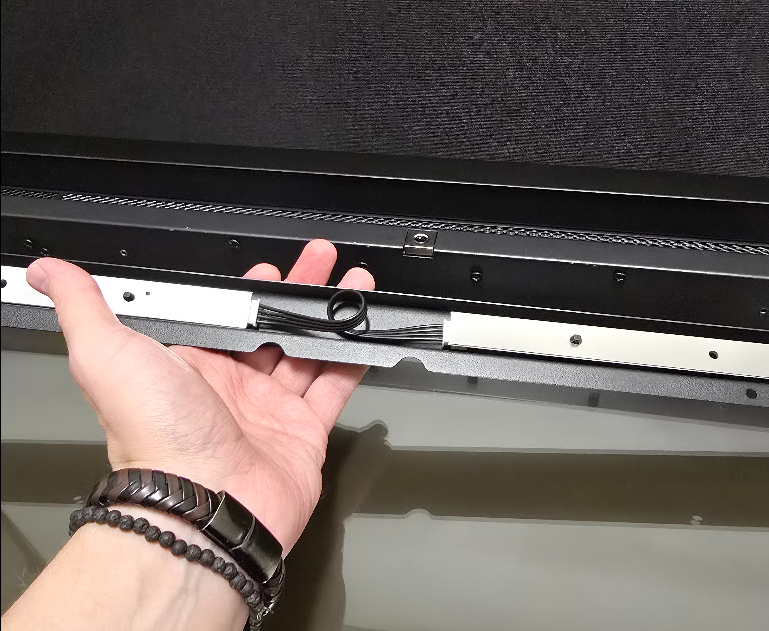

6. Unscrew and remove the downlight box located at the top of the display.
|
|
|

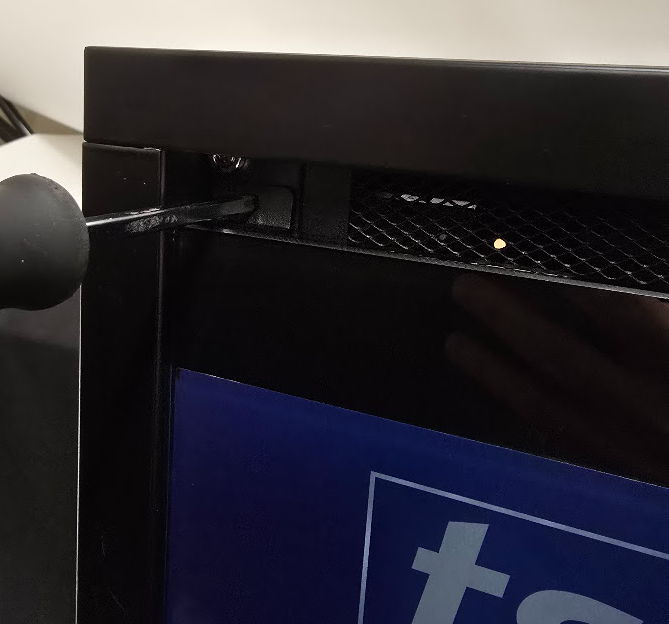

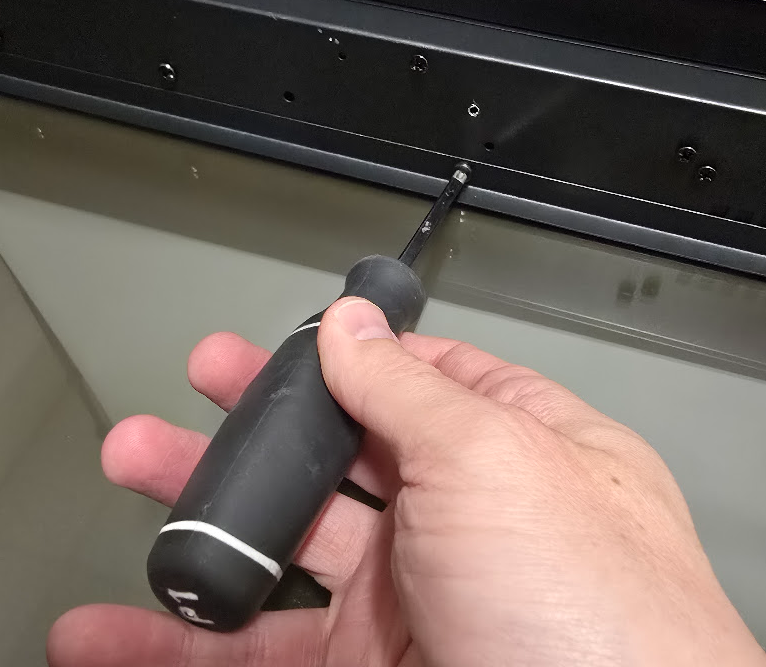

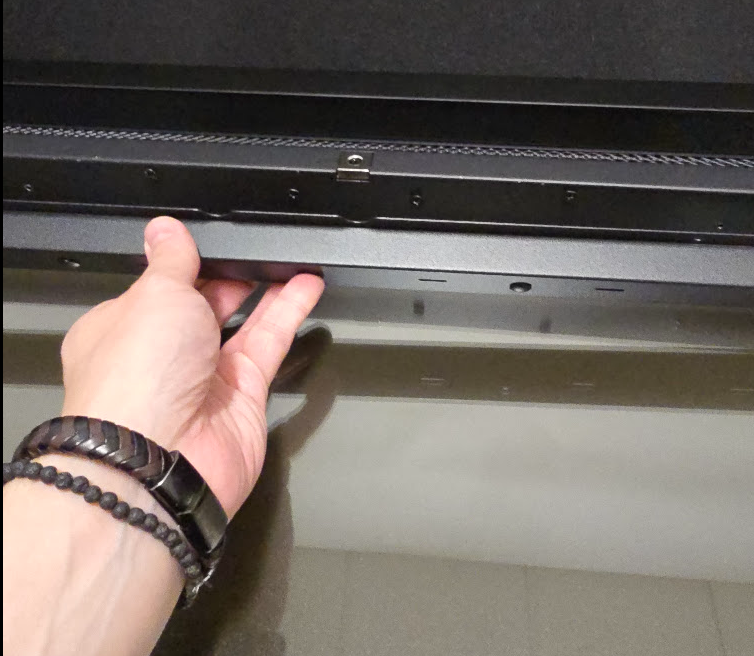

7. Unscrew and remove the supporting metal strip at the top of the display panel
|
|

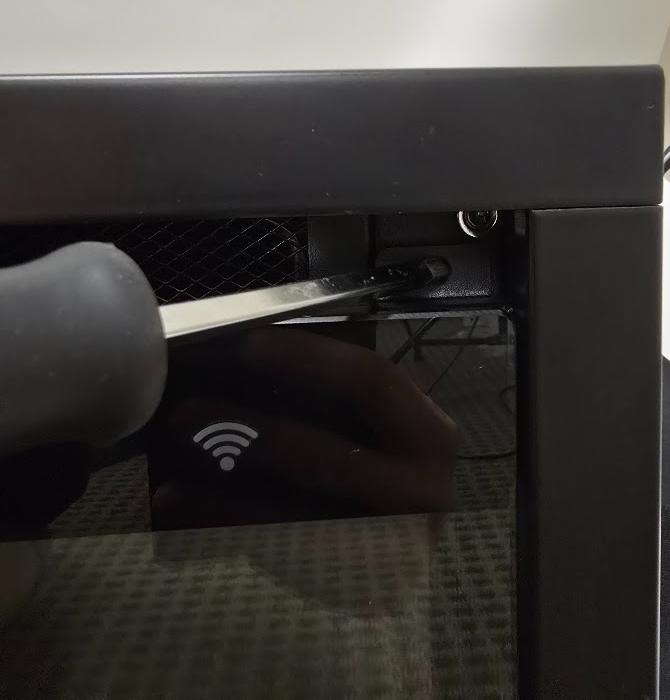

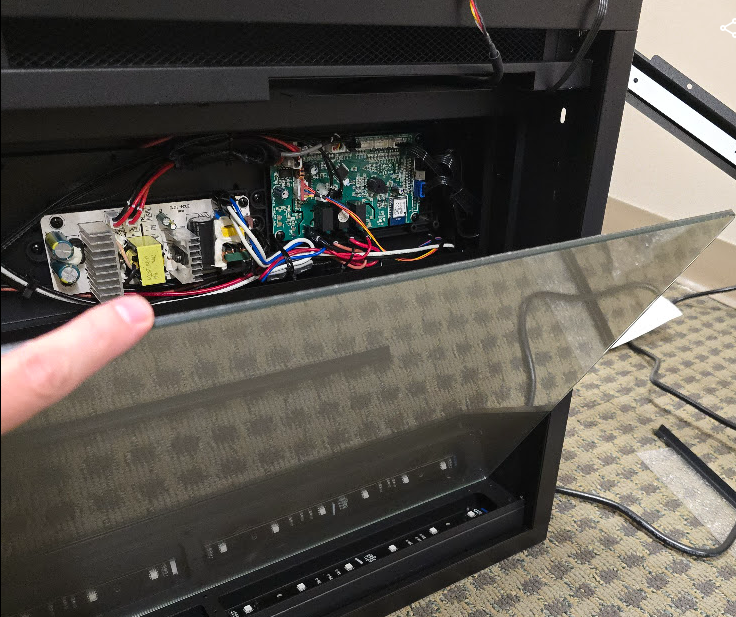

8. Now, we need to unscrew and remove the control panel, and the display panel can be tilted outwards
|
|
9. You can now remove the display panel from the fireplace and replace it if needed.
If you have any questions please contact our technical support team at 800-215-1990 for further troubleshooting or click the following link to file a support ticket: https://touchstonehomeproducts.freshdesk.com/support/tickets/new
