How To: Remove the Display Panel on Touchstone Sideline Fury Fireplace

Modified on Wed, 22 Jul at 1:58 PM

This guide explains how to remove the display panel on Sideline Fury fireplaces.

Models Supported:

80053 - Sideline Fury 46"
80054 – Sideline Fury 50"
80055 - Sideline Fury 57"
80056 - Sideline Fury 65"

Tools Required:

- Philips-head screwdriver

Instructions:

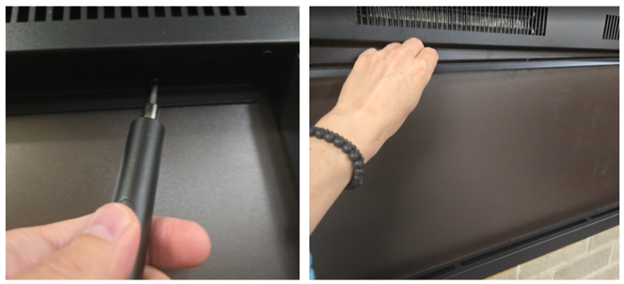

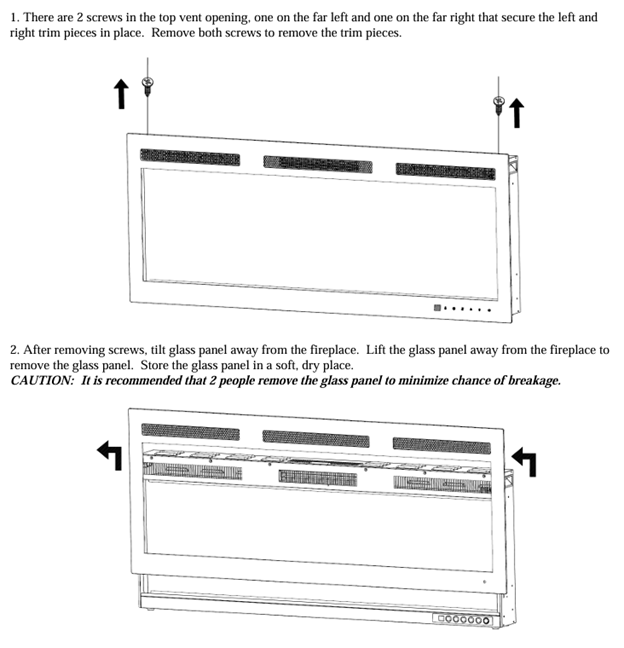

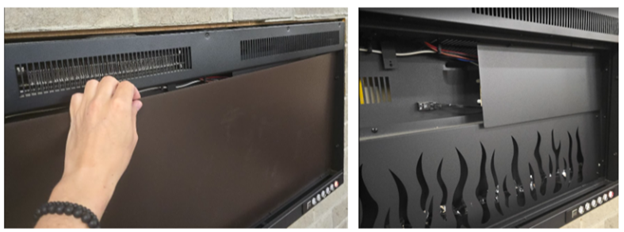

1. Remove the glass panel:

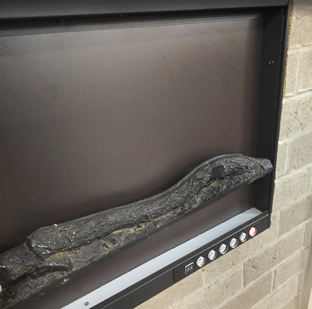

2. Remove the log or crystals:

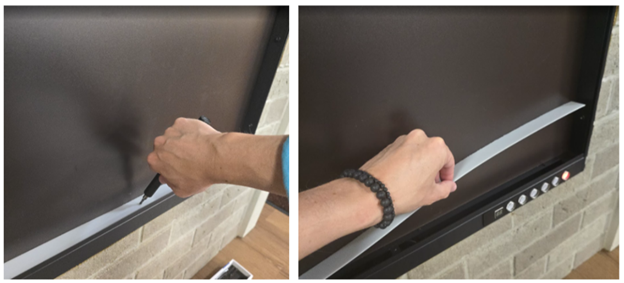

3. Unscrew, and remove the crystal strip:

4. Unscrew and remove the metal bracket that supports the display panel:

5. Gently pull the display panel in the middle and remove it from the fireplace:

6. If your display panel is damaged and you have replacement ready, you can now insert it and put everything together by following the instructions above in reversed order.

Need More Help?

Please contact our technical support team at 800-215-1990 for further troubleshooting or click the following link to file a support ticket:

https://touchstonehomeproducts.freshdesk.com/support/tickets/new
