How To: Remove The Glass Panel On The Sideline Series Electric Fireplace

The following instructions describe how to remove the glass panel from the Sideline Series Electric Fireplace.

Models Supported:

80004 - Sideline 50"

80006 - Forte 40"

80011 - Sideline 60"

80014 - Sideline 36"

80015 - Sideline 72"

80025 - Sideline 45"

80027 - Sideline 40"

80032 - Sideline 100"

80043 - Sideline 84"

Tools Required:

    - Philips-head screw driver

Instructions:

To remove the glass panel, please follow the instructions below:

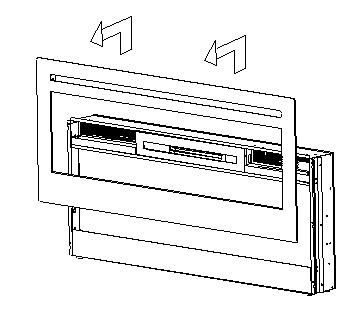

1. There are 2 screws in the top vent opening, one on the far left and one on the far right, that secure the left and right trim pieces in place.  Remove both screws to remove the trim pieces.

2. After removing screws, tilt glass panel UP and STRAIGHT OUT toward you to remove from fireplace.

3.  Place the glass panel in a soft, dry place.

CAUTION: It is recommended that 2 people remove the glass panel to minimize chance of breakage

Video Instructions:

For video instructions on removing the glass panel on your Sideline Series Electric Fireplace, click on the following link:

Instructions For Removing Glass Panel on Sideline Series Electric Fireplace
